NTE825

Features: · Battery Operation· 1W Output Power· Excellant Supply Rejection· Low DistortionApplication` AMFM Radio Amplifiers` Portable Tape Player Amplifiers` TV Sound SystemsPinoutSpecificationsSupply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...

product image

NTE825 Picture
See larger image
SeekIC No. : 004436492 Detail

NTE825: Features: · Battery Operation· 1W Output Power· Excellant Supply Rejection· Low DistortionApplication` AMFM Radio Amplifiers` Portable Tape Player Amplifiers` TV Sound SystemsPinoutSpecificationsSup...

NTE825 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE825
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Battery Operation
· 1W Output Power
· Excellant Supply Rejection
· Low Distortion


Application

` AMFM Radio Amplifiers
` Portable Tape Player Amplifiers
` TV Sound Systems


Pinout

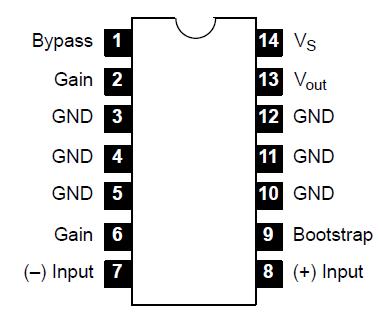

Connection Diagram


Specifications

Supply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3W
Input Voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.4V
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . +150
Lead Temperature (During Soldering, 10 seconds), TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300
Note 1. Pins 3, 4, 5, 10, 11, 12 at TC = +25. Derate at 15°C/W above TC = +25.


Description

The NTE825 amplifier is an integrated circuit in a 14Lead DIP type package optimized for 6V, 7.5V, and 9V operation into low impedance loads. The gain is internally set at 20 to keep the external part count low, but the addition of an external resistor and capacitor between Pin2 and Pin6 will increase the gain to any value up to 200. The inputs of NTE825 are ground referenced while the output is automatically biased to one half the supply voltage.
