NTE824

Features: ` Low Noise: 1.0V Total Input Noise` High Gain: 104dB Open Loop` Single Supply Operation` Wide Supply Range: 9V to 30V` Power Supply Rejection: 110dB` Large Output Voltage Swing (VCC2V)pp` Wide Bandwidth 15MHz Unity Gain` Power Bandwidth 75kHz, 20Vpp` Internally Compensated` Short Circui...

product image

NTE824 Picture
See larger image
SeekIC No. : 004436490 Detail

NTE824: Features: ` Low Noise: 1.0V Total Input Noise` High Gain: 104dB Open Loop` Single Supply Operation` Wide Supply Range: 9V to 30V` Power Supply Rejection: 110dB` Large Output Voltage Swing (VCC2V)pp`...

NTE824 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE824
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low Noise: 1.0V Total Input Noise
` High Gain: 104dB Open Loop
` Single Supply Operation
` Wide Supply Range: 9V to 30V
` Power Supply Rejection: 110dB
` Large Output Voltage Swing (VCC2V)pp
` Wide Bandwidth 15MHz Unity Gain
` Power Bandwidth 75kHz, 20Vpp
` Internally Compensated
` Short Circuit Protected


Pinout

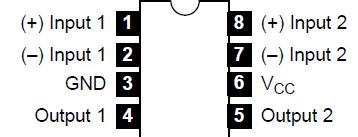

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . +30V
Power Dissipation (Note 1), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 660mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65° to +150
Lead Temperature (During Soldering, 10sec), TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300
Note 1 For operation in ambient temperatures above 25, the device must be derated based on a 150 maximum junction temperature and a thermal resistance of 187/W junction to ambient.


Description

The NTE824 is a dual preamplifier for the amplification of low level signals in applications requiring optimum noise performance. Each of the two amplifiers is completely independent, with an internal power supply decouplerregulator, providing 110dB supply rejection and 60dB channel separation.

Other outstanding features of NTE824 include high gain (104dB), large output voltage swing (VCC 2V)pp, and wide power bandwidth (75kHz, 20Vpp). The device operates from a single supply across the wide range of 9V to 30V.

The amplifiers NTE824 are internally compensated for gains greater than 10.
