NTE8212

Features: ` Fully Parallel 8Bit Data Register and Buffer` Service Request FlipFlop for Interrupt Generation` Low Input Load Current: 0.25mA Max` Three State Outputs` Outputs Sink 15mA` 3.65V Output High Voltge for Direct Interface to 8080A Processor` Asynchronous Register Clear` Replaces Buffers, ...

product image

NTE8212 Picture
See larger image
SeekIC No. : 004436488 Detail

NTE8212: Features: ` Fully Parallel 8Bit Data Register and Buffer` Service Request FlipFlop for Interrupt Generation` Low Input Load Current: 0.25mA Max` Three State Outputs` Outputs Sink 15mA` 3.65V Output ...

NTE8212 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE8212
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Fully Parallel 8Bit Data Register and Buffer
` Service Request FlipFlop for Interrupt Generation
` Low Input Load Current: 0.25mA Max
` Three State Outputs
` Outputs Sink 15mA
` 3.65V Output High Voltge for Direct Interface to 8080A Processor
` Asynchronous Register Clear
` Replaces Buffers, Latches and Multiplexers in Microcomputer Systems
` Reduces System Package Count


Pinout

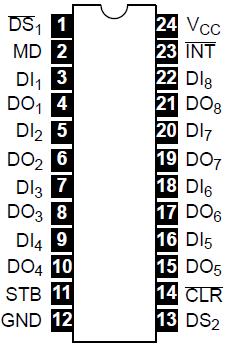

Connection Diagram


Specifications

All Output or Supply Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5V to +7V
All Input Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.0V to +5.5V
Output Currents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 125mA
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150
Note 1. Stress above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The NTE8212 input/output port is an integrated circuit in a 24Lead DIP type package and consists of an 8bit latch with threestate output buffers along with control and device selection logic. Also included is a service request flipflop for the control and generation of interrupts to the microprocessor.
