NTE815

Features: ` Internal Shunt Regulator` Preset Hold Control Capability` ±300Hz Typical PullIn` Linear Balanced Phase Detector` Variable Output Duty Cycle for Driving Tube or Transistor` Low Thermal Frequency Drift` Small Static Phase Error` Adjustable dc Loop GainPinoutSpecificationsSupply Current ....

product image

NTE815 Picture
See larger image
SeekIC No. : 004436485 Detail

NTE815: Features: ` Internal Shunt Regulator` Preset Hold Control Capability` ±300Hz Typical PullIn` Linear Balanced Phase Detector` Variable Output Duty Cycle for Driving Tube or Transistor` Low Thermal Fr...

NTE815 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE815
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Internal Shunt Regulator
` Preset Hold Control Capability
` ±300Hz Typical PullIn
` Linear Balanced Phase Detector
` Variable Output Duty Cycle for Driving Tube or Transistor
` Low Thermal Frequency Drift
` Small Static Phase Error
` Adjustable dc Loop Gain

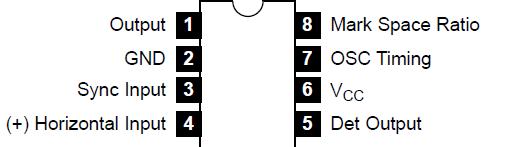

Pinout

Connection Diagram


Specifications

Supply Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Output Voltage, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Output Current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..30mA
Sync Input Voltage (Pin 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V(pp)
Flyback Input Voltage (Pin 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5V(pp)
Power Dissipation (Package limitation), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .625mW
Derate above 25° . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0mW/
Operating Ambient Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +75
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150


Description

The NTE815 is an integrated circuit in an 8Lead DIP type package containing lowlevel horizontal sections including phase detector, oscillator and predrivera device designed for use in all types of television receivers.
