Product Details

Description



Features:

` 1 Watt RMS Power into 8 with THD = 0.65% Typ
` Peak Output Current: 1A
` Wide Supply Voltage Range: 4V to 13V
` High Input Impedance


Application

· Radios
· Phonographs
· Portable Communications Receivers
· Complementary Power Amplifier Drivers
· Servo Drivers


Pinout

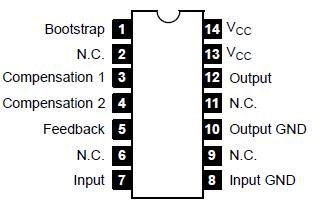

Connection Diagram


Specifications

Supply Voltage (Note 1), VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . 15V
Output Current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 1A
Continuous Power Dissipation (TA +25°C, Note 2), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1W
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .....14.7mW/
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +100
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150
Lead Temperature (During Soldering, 1/16" from case, 10sec), TL . . . . . . . . . . . . . . . . . . . . . +260
Note 1. Voltage values are with respect to network GND terminal.
Note 2. This rating is valid for the condition that all pins are soldered into a printed circuit board with
a 2" x 2" copper layer area of 14 mil thickness. Most of the heat is conducted to the printed
circuit board copper layer through Pin8 (Input GND).


Description

The NTE812 is a monolithic integrated circuit in a 14Lead DIP type package designed for use in driver and power amplifier applications at frequencies from 50Hz to 40kHz. This NTE812 will deliver up to 1W RMS output power into an 8 load. The high input impedance and low standby current provide excellent lowpower audio output performance for portable applications. The high peak current capability of NTE812 can be utilized for direct driving of complementary power transistors in high power amplifier applications.
