NT511740C5J

Features: ·4,194,304-word x 4-bit configuration·Single 5V power supply,+/-10% tolerance·Input :TTL compatible , low input capacitance·Output :TTL compatible , 3-state·Refresh :2048 cycles/32 ms·Fast page mode with EDO, read modify write capability·/CAS before /RAS refresh, hidden refresh, /RAS-onl...

product image

NT511740C5J Picture
See larger image
SeekIC No. : 004435784 Detail

NT511740C5J: Features: ·4,194,304-word x 4-bit configuration·Single 5V power supply,+/-10% tolerance·Input :TTL compatible , low input capacitance·Output :TTL compatible , 3-state·Refresh :2048 cycles/32 ms·Fast...

NT511740C5J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NT511740C5J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·4,194,304-word x 4-bit configuration
·Single 5V power supply,+/-10% tolerance
·Input :TTL compatible , low input capacitance
·Output :TTL compatible , 3-state
·Refresh :2048 cycles/32 ms
·Fast page mode with EDO, read modify write capability
·/CAS before /RAS refresh, hidden refresh, /RAS-only refresh capability
·Multi-bit test mode capability
·Package options:


Pinout

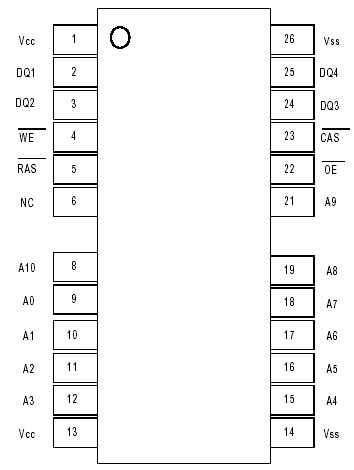

Connection Diagram


Specifications

Parameter Symbol Rating Units
Voltage on Any Pin Relative to VSS VIN,VOUT -0.3 to VCC+0.3
 V
Voltage on VCC Supply Relative to VSS VCC -0.5 to 7 V
Short Circuit Output Cuttent IOS 50 mA
Po/WEr Dissipation PD* 1 W
Operation Temperature Topr 0 to 70
Storage Temperature Tstg -55 to 150



Description

The NT511740C5J is a 4,194,304-word x 4-bit dynamic RAM fabricated in NTC's CMOS silicon gate technology. It achieves high integration , high-speed operation , and lowpower consumption due to quadruple polysilicon double metal CMOS. It is available in a 26/24-pin plastic SOJ.
