NSBC114YPDXV6T5G

Transistors Switching (Resistor Biased) 100mA Complementary 50V Dual NPN & PNP

product image

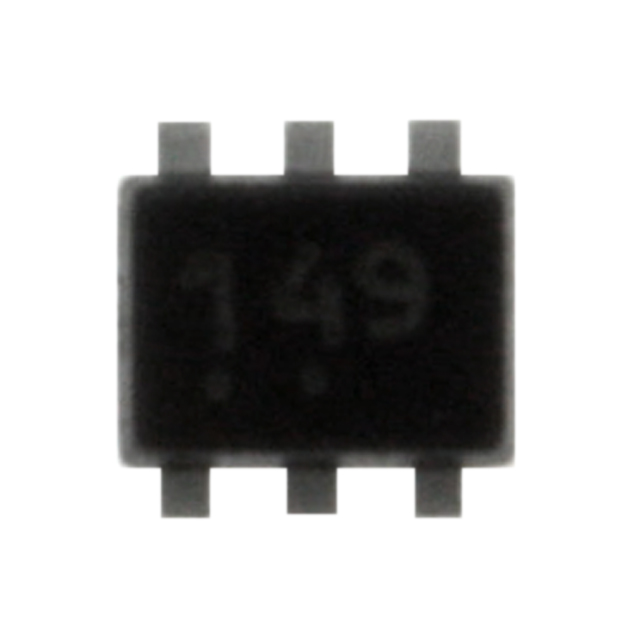

NSBC114YPDXV6T5G Picture
See larger image
SeekIC No. : 00222445 Detail

NSBC114YPDXV6T5G: Transistors Switching (Resistor Biased) 100mA Complementary 50V Dual NPN & PNP

NSBC114YPDXV6T5G Data Sheet

floor Price/Ceiling Price

US $ .04~.04 / Piece | Get Latest Price
Part Number:
NSBC114YPDXV6T5G
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~8000
  • 8000~8300
  • 8300~10000
  • 10000~25000
  • Unit Price
  • $.04
  • $.04
  • $.04
  • $.04
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Dual Transistor Polarity : PNP
Typical Input Resistor : 10 KOhms Typical Resistor Ratio : 0.21
Mounting Style : SMD/SMT Package / Case : SOT-563-6
Collector- Emitter Voltage VCEO Max : 50 V Continuous Collector Current : 0.1 A
Peak DC Collector Current : 100 mA Power Dissipation : 357 mW
Maximum Operating Temperature : + 150 C Packaging : Reel

Description

Maximum Operating Frequency :
Maximum Operating Temperature : + 150 C
Packaging : Reel
Mounting Style : SMD/SMT
Collector- Emitter Voltage VCEO Max : 50 V
Typical Input Resistor : 10 KOhms
Transistor Polarity : PNP
Configuration : Dual
Peak DC Collector Current : 100 mA
Package / Case : SOT-563-6
Continuous Collector Current : 0.1 A
Typical Resistor Ratio : 0.21
Power Dissipation : 357 mW


Parameters:

Technical/Catalog InformationNSBC114YPDXV6T5G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max500mW
Resistor - Base (R1) (Ohms)10K
Resistor - Emitter Base (R2) (Ohms)47K
Vce Saturation (Max) @ Ib, Ic250mV @ 300A, 10mA
Current - Collector Cutoff (Max)500nA
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Frequency - Transistion-
Mounting TypeSurface Mount
Package / CaseSOT-563
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names NSBC114YPDXV6T5G
NSBC114YPDXV6T5G
