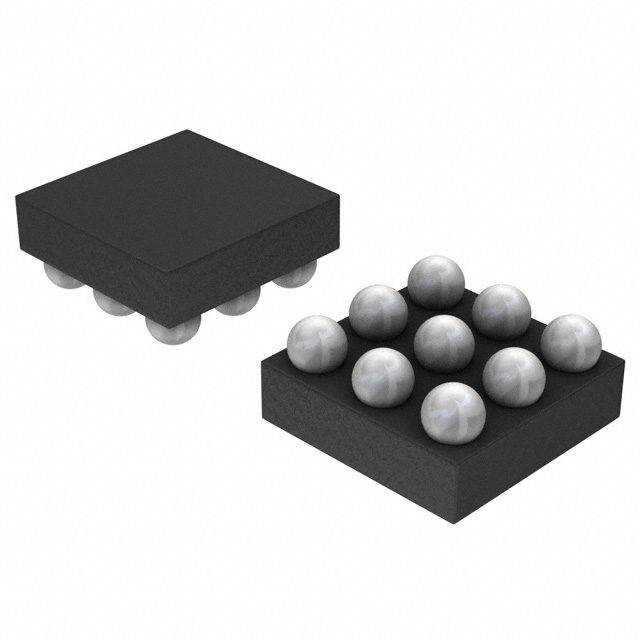

product image

NMF3000 Picture
See larger image
SeekIC No. : 004434941 Detail

NMF3000: Features: • Dual Filtering Lines for 2−Channels or Differential Transmission• Separate Power and Analog Grounds for ESD Protection and Filtering Circuitry• VCC Input Pin on F...

NMF3000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NMF3000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Dual Filtering Lines for 2−Channels or Differential Transmission
• Separate Power and Analog Grounds for ESD Protection and Filtering Circuitry
• VCC Input Pin on First Stage to Set Microphone DC Bias
• IEC 61000−4−2 Grade ±15 kV Contact ESD Protection on the Inputs, VCC, and Between Power and Analog Grounds
• IEC 61000−4−2 Level 1 ESD protection on All Other Pin−to−Pin Combinations
• These are Pb−Free Devices*


Specifications

Rating
Symbol
Value
Units
Operating Ambient Temperature Range
TA
−40 to 85
°C
Moisture Sensitivity
MSL
Level 1
Storage Temperature Range
Tstg
−55 to 150
°C
Supply Voltage
VCC
0 to 11
V



Description

The NMF3000 and the NMF3010 are a dual−stage, differential line ESD and filtering protection scheme for input signals into portable devices. The NMF3000 is the first stage and is located at or very near to the interface to the outside world. NMF3000 provides the high−level ESD protection as well as the initial filtering of incoming audio signals. The NMF3010 is the second stage and provides additional signal filtering. This second stage can be placed some distance away from the first stage to allow for effective filtering across extended distances.
