NM24C32

Features: ` Extended operating voltage 2.7V 5.5V` 400 KHz clock frequency (F) at 2.7V - 5.5V` 200mA active current typical 10mA standby current typical1mA standby typical (L) 0.1mA standby typical (LZ)` IIC compatible interface Provides bidirectional data transfer protocol` 32 byte page write mo...

product image

NM24C32 Picture
See larger image
SeekIC No. : 004434838 Detail

NM24C32: Features: ` Extended operating voltage 2.7V 5.5V` 400 KHz clock frequency (F) at 2.7V - 5.5V` 200mA active current typical 10mA standby current typical1mA standby typical (L) 0.1mA standby typical ...

NM24C32 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NM24C32
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Extended operating voltage 2.7V 5.5V
` 400 KHz clock frequency (F) at 2.7V - 5.5V
` 200mA active current typical
   10mA standby current typical
   1mA standby typical (L)
   0.1mA standby typical (LZ)
` IIC compatible interface
    Provides bidirectional data transfer protocol
` 32 byte page write mode
   Minimizes total write time per byte
` Self timed write cycle Typical write cycle time of 6ms
` Hardware write protect for upper block
` Endurance: 1,000,000 data changes
` Data retention greater than 40 years
` Packages available: 8-pin SO, 8-pin DIP
` Low VCC programming lockout (3.8V - on Standard VCC devices only).

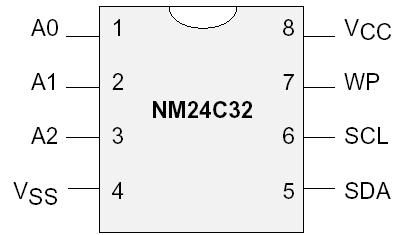

Pinout

Connection Diagram


Specifications

Ambient Storage Temperature  . . .65°C to +150°C
All Input or Output Voltages
with Respect to Ground  . . . . . . . . . . . .6.5V to  0.3V
Lead Temperature
(Soldering, 10 seconds)  . . . . . . . . . . . . . .. . .+300°C
ESD Rating  . . . . . . . . . . . . . . . . . . . . . . . . .2000V min.


Description

The NM24C32 devices are 32,768 bits of CMOS nonvolatile electrically erasable memory. NM24C32 offer the designer different low voltage and low power options, and they conform to all specifications in the Extended IIC 2-wire protocol. Furthermore, they are designed to minimize device pin count and simplify PC board layout requirements.

The upper half of the NM24C32 can be disabled (Write Protection) by connecting the WP pin to VCC. This section of memory then becomes ROM.

This communication protocol of NM24C32 uses CLOCK (SCL) and DATA I/O (SDA) lines to synchronously clock data between the master (for example a microprocessor) and the slave EEPROM device(s).

Fairchild EEPROMs NM24C32 are designed and tested for applications requiring high endurance, high reliability, and low power consumption.
