NM24C03

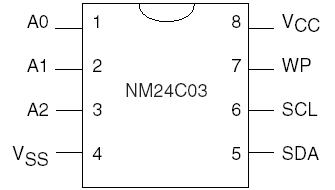

The NM24C02/03 devices are 2048 bits of CMOS non-volatile electrically erasable memory. NM24C03 conform to all specifications in the Standard IIC 2-wire protocol and are designed to minimize device pin count, and simplify PC board layout requirements. The upper half (upper 1Kbit) of the memory of the NM24C03 can be write protected by connecting the WP pin to VCC. This section of memory then becomes unalterable unless WP is switched to VSS.

This communications protocol of NM24C03 uses CLOCK (SCL) and DATA I/O (SDA) lines to synchronously clock data between the master (for example a microprocessor) and the slave EEPROM device(s).

The Standard IIC protocol allows for a maximum of 16K of EEPROM memory which is supported by the Fairchild family in 2K, 4K, 8K, and 16K devices, allowing the user to configure the memory as the application of NM24C03 requires with any combination of EEPROMs. In order to implement higher EEPROM memory densities on the IIC bus, the Extended IIC protocol must be used. (Refer to the NM24C32 or NM24C65 datasheets for more information.)

Fairchild EEPROMs are designed and tested for applications requiring high endurance, high reliability and low power consumption.
