NLAST4599

Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum-rated conditions is not implied. Functional
operation should be restricted to the Recommended Operating Conditions.
1. Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.
2. Tested to EIA/JESD22-A114-A
3. Tested to EIA/JESD22-A115-A
4. Tested to JESD22-C101-A
5. Tested to EIA/JESD78

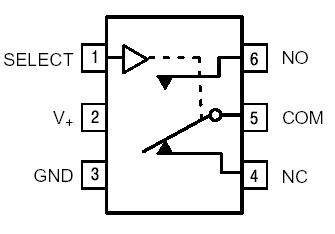

The NLAST4599 is an advanced high speed CMOS single pole -double throw analog switch fabricated with silicon gate CMOS technology. NLAST4599 achieves high speed propagation delays and low ON resistances while maintaining low power dissipation. This switch of NLAST4599 controls analog and digital voltages that may vary across the full power-supply range (from V_CC to GND).

NLAST4599 has been designed so the ON resistance (RON) is much lower and more linear over input voltage than RON of typical CMOS analog switches.

The channel of NLAST4599 select input structure provides protection when voltages between 0 V and 5.5 V are applied, regardless of the supply voltage. This input structure of NLAST4599 helps prevent device destruction caused by supply voltage - input/output voltage mismatch, battery backup, hot insertion, etc.
