Features: • High Speed: tPD = 1 ns (Typ) at VCC = 5.0 V• Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C• High Bandwidth, Improved Linearity, and Low RDSON• INH Pin Allows a Both Channels 'OFF' Condition (With a High)• RDSON @ 25 W , Performance Very Similar to t...
NLAS1053: Features: • High Speed: tPD = 1 ns (Typ) at VCC = 5.0 V• Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C• High Bandwidth, Improved Linearity, and Low RDSON• INH Pin Allo...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $.2 - .23 / Piece
Multiplexer Switch ICs 2:1 Mux/Demux Switch -55 to 125deg C
Symbol | Parameter | Value | Unit |
VCC | DC Supply Voltage | -0.5 to +7.0 | V |
VI | DC Input Voltage | −0.5 Vis + 7.0 | V |
VO | DC Output Voltage Output in Higher or Low State (Note 1) | −0.5 Vis + 0.5 | V |
IIK | DC Input Diode Current VI < GND | -50 | mA |
IOK | DC Output Diode Current VO = GND VO = VCC |
-50 |
mA |
IOU | DC Output Sink Current | ±50 | mA |
ICC | DC Supply Current per Supply Pin | ±100 | mA |
IGND | DC Ground Current per Ground Pin | ±100 | mA |
TSTG | Storage Temperature Range | -65 to +150 | °C |
TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 | °C |
TJ | Junction Temperature Under Bias | +150 | °C |
JA | Thermal Resistance SOT- 353 (Note 1) SOT- 553 |
250 | °C/W |
PD | Power Dissipation in Still Air at 85°C | 250 | mW |
MSL | Moisture Sensitivity | Level 1 | |
FR | Flammability Rating Oxygen Index: 28 to 34 | UL 94 V0 @ 0.125 in | |
VESD | ESD Withstand Voltage Human Body Model (Note 2) Machine Model (Note 3) Charged Device Model (Note 4) |
> 2000 200 N/A |
V |
ILatchUp | LatchUp Performance Above VCC and Below GND at 85C (Note 5) | ±300 | mA |
Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
1. Measured with minimum pad spacing on an FR4 board, using 10 mmby1 inch, 2ounce copper trace with no air flow.
2. Tested to EIA/JESD22A114A.
3. Tested to EIA/JESD22A115A.
4. Tested to JESD22C101A.
5. Tested to EIA/JESD78.

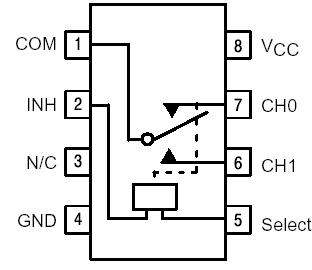

The NLAS1053 is an advanced CMOS analog switch fabricated with silicon gate CMOS technology. NLAS1053 achieves very high speed propagation delays and low ON resistances while maintaining CMOS low power dissipationNLAS1053 consists of a single 2:1 Mux/Demux (SPDT), similar to ON Semiconductor's NLAS4053 analog and digital voltages that may vary across the full power supply range (from VCC to GND).
The inhibit and select input pins have over voltage protection of NLAS1053 that allows voltages above VCC up to 7.0 V to be present without damage or disruption of operation of the part, regardless of the operating voltage.
