Product Details

Description



Features:

• Same Pinout as the Popular NLAS323
• Excellent Performance Maximum RDSON 15  at 3.0 V
• Matching Between the Switches ±1.5  at 3.0 V
• 1.65 V to 5.5 V Operating Range
• Lower Threshold Voltages for LVTTL/CMOS Levels
• Ultra−Low Charge Injection  4.8 pC at 3.0 V
• Low Standby Power ICC = 1.0 nA (max) @ TA = 25°C
• CMOS Level Compatibility
• OVT* (Pins 1, 3, 5, and 7) as much as +7.0 V in any Input, Regardless of Operating Voltage, Allows a Short from USB Line without Damage to the Device


Application

• USB Isolation
• Cell Phones
• PDAs
• MP3s Digital Still Cameras


Pinout

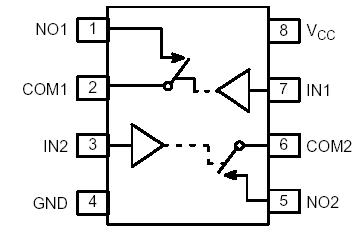

Connection Diagram


Specifications

Symbol Rating Value Unit
VCC DC Supply Voltage -0.5 to +7.0 V
VI DC Input Voltage NO
COM		 -0.5 to +7.0
−0.5 to VCC		 V
VO DC Output Voltage -0.5 to +7.0 V
IIK DC Input Diode Current VI < GND -50 mA
IOK DC Output Diode Current VO < GND -50 mA
IO DC Output Sink Current 50 mA
ICC DC Supply Current per Supply Pin 100 mA
IGND DC Ground Current per Ground Pin 100 mA
TSTG Storage Temperature Range -65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature under Bias +150 °C
JA Thermal Resistance (Note 1) 250 °C/W
PD Power Dissipation in Still Air at 85°C 250 mW
MSL Moisture Sensitivity Level 1 −
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V−0 @ 0.125 in −
VESD ESD Withstand Voltage Human Body Model (Note 2)
Machine Model (Note 3)
Charged Device Model (Note 4)		 > 2000
> 200
N/A		 V
