Features:

• Improved RDS(on) Specifications
• Pin for Pin Replacement for MAX4051 and MAX4051A
   One Half the Resistance Operating at 5.0 Volts
• Single or Dual Supply Operation
   Single 35 Volt Operation, or Dual ±3 Volt Operation
   With VCC of 3.0 to 3.3 V, Device Can Interface with 1.8 V Logic,
   No Translators Needed
   Address and Inhibit Logic are OverVoltage Tolerant and May Be
   Driven Up +6 V Regardless of VCC
• Address and Inhibit Pins Standard TTL Compatible
   Greatly Improved Noise Margin Over MAX4051 and MAX4051A
   True TTL Compatibility VIL = 0.8 V, VIH = 2.0 V
• Improved Linearity Over Standard HC4051 Devices
• Popular SOIC, and Space Saving TSSOP, and QSOP 16 Pin Packages

Pinout

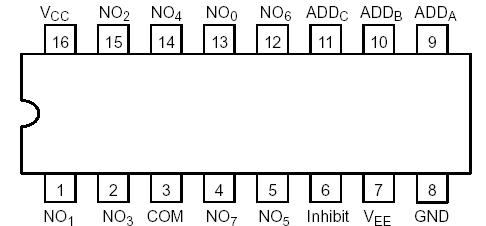

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VEE	Negative DC Supply Voltage	-7.0 to +0.5
V_CC	Positive DC Supply Voltage	-0.5 to +7.0 -0.5 to +7.0	V
V_IS	Analog Input Voltage (VNO or VCOM)	-0.5 to +7.0	V
V_IN	Digital Select Input Voltage	-0.5 to VCC +0.5	V
I_IK	DC Current, Into or Out of Any Pin	±20	mA
T_STG	Storage Temperature Range	-65 to +150
TL	Lead Temperature, 1 mm from Case for 10 Seconds	260
T_J	Junction Temperature under Bias	+150
_JA	Thermal Resistance SC70?5/SC?88A (Note 1) TSOP?5	350 230	°C/W
P_D	Power Dissipation in Still Air at 85°C SC70?5/SC?88A TSOP?5	150 200	mW
M_SL	Moisture Sensitivity	Level 1
F_R	Flammability Rating Oxygen Index: 28 to 34	UL 94?V0 (0.125 in)
V_ESD	ESD Withstand Voltage Human Body Model (Note 1) Machine Model (Note 2) Charged Device Model (Note 3)	> 2000 >200 > 1000	V
I_LatchUp	LatchUp Performance Above VCC and Below GND at 85 (Note 5)	±300	mA

1. Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Extended exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximumrated conditions is not implied.
2. The absolute value of VCC ±|VEE| 3 7.0.
3. Tested to EIA/JESD22A114A.
4. Tested to EIA/JESD22A115A.
5. Tested to JESD22C101A.
6. Tested to EIA/JESD78.

Description

The NLAST4051 is an improved version of the MC14051 and MC74HC4051 fabricated in submicron Silicon Gate CMOS technology for lower RDS(on) resistance and improved linearity with low current.NLAST4051 may be operated either with a single supply or dual supply up to ±3 V to pass a 6 VPP signal without couplingcapacitors.

When operating in single supply mode, NLAST4051 is only necessary to tieVEE, pin 7 to ground. For dual supply operation, VEE is tied to a negative voltage, not to exceed maximum ratings. Translation of NLAST4051 is provided in the device, the Address and Inhibit are standard TTL level compatible. For CMOS compatibility see NLAS4051. Pin for pin compatible with all industry standard versions of '4051.'
