Product Details

Description



Features:

• High Speed: tPD = 1.0 ns (Typ) at VCC = 5.0 V
• Low Power Dissipation: ICC = 2.0 A (Max) at TA = 25°C
• Standard CMOS Logic Levels
• High Bandwidth, Improved Linearity
• Switches Standard NTSC/PAL Video, Audio, SPDIF and HDTV
• May be used for Clock Switching, Data Mux'ing, etc.
• Low RDSON
• Break Before Make Circuitry, Prevents Inadvertent Shorts
• 2 Devices can Switch Balanced Signal Pairs, e.g. LVDS ± 200−Mb/s
• Latchup Performance Exceeds 300 mA
• Pin for Pin Drop in for NC7SB3157
• Tiny SC88 Package Only 2.0 x 2.1 mm
• ESD Performance: Human Body Model; ± 2000 V; Machine Model; ±200 V
• Extended Automotive Temperature Range −55°C to +125°C (See Appendix)
• Pb−Free Package is Available



Pinout

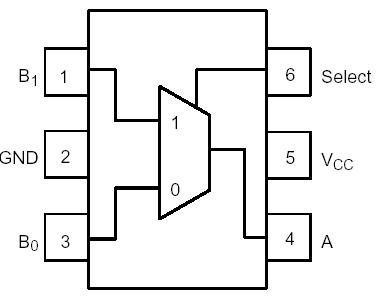

  Connection Diagram


Specifications

Rating Symbol Value Unit
Supply Voltage VCC −0.5 to +7.0 V
DC Switch Voltage (Note 1) VS −0.5 to VCC + 0.5 V
DC Input Voltage (Note 1) VIN −0.5 to + 7.0 V
DC Input Diode Current @ VIN < 0 V IIK −50 mA
DC Output Current IOUT 128 mA
DC VCC or Ground Current ICC/IGND +100 mA
Storage Temperature Range Tstg −65 to +150 °C
Junction Temperature Under Bias TJ 150 °C
Junction Lead Temperature (Soldering, 10 Seconds) TL 260 °C
Power Dissipation @ +85°C PD 180 mW

Maximum ratings are DC values beyond which the device may be damaged or have its useful life impaired. The data sheet specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. ON Semiconductor does not recommend operation outside data sheet specifications.
1. The input and output negative voltage ratings may be exceeded if the input and output diode current ratings are observed.




Description

The NLASB3157 is an advanced CMOS analog switch fabricated with silicon gate CMOS technology. NLASB3157 achieves very low propagation delay and RDSON resistances while maintaining CMOS low power dissipation. Analog and digital voltages that may vary across the full power−supply range (from VCC to GND). NLASB3157 is a drop in replacement for the NC7SB3157.

The select pin of NLASB3157 has overvoltage protection that allows voltages above VCC, up to 7.0 V to be present on the pin without damage or disruption of operation of the part, regardless of the operating voltage.
