Product Details

Description



Features:

• Low RDS(on): 4.5 W @ 3.0 V
• Matching Between the Switches ±0.5 W
• Wide Low Voltage Range: 1.8 V to 5.5 V
• High Bandwidth > 130 MHz
• 1.65 V to 5.5 V Operating Range
• Low Threshold Voltages on Pins 4 and 8 (CTRL Pins)
• Ultra−Low Charge Injection 6.0 pC
• Low Standby Current ICC = 1.0 nA (Max) @ TA = 25°C
• OVT* on Pins 4 and 8 (CTRL Logic Pins)
• Pb−Free Packages are Available



Application

• Cell Phones
• PDAs
• MP3s
• Digital Still Cameras



Pinout

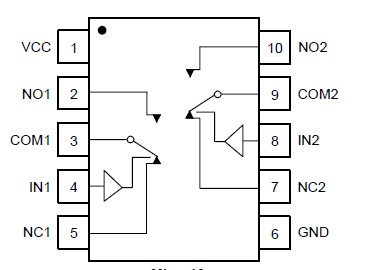

  Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

V+

Positive DC Supply Voltage

-0.5 to -7.0

V

VIS

Analog Input Voltage (VNO, VNC, or VCOM) (Note 1)

-0.5  VISVCC +0.5

V

VIN

Digital Select Input Voltage

-0.5  VI-7.0

V

IIK

DC Current, Into or Out of Any Pin (Continuous)

±100

mA

IPK

Peak Current (10% Duty Cycle)

±200

mA




Description

The NLAS4717 is an advanced CMOS analog switch fabricated in sub−micron silicon gate CMOS technology. The device is a dual independent Single Pole Double Throw (SPDT) switch featuring two low RDS(on) of 4.5 W at 3.0 V.
