NLAS4157

Features: • Single Supply Operation: 1.65 V to 5.5 V VCC Function Directly from LiON Battery• Tiny SC88 6−Pin Pb−Free Package: Meets JEDEC MO−220 Specifications• RON Typical = 0.8 @ VCC = 4.5 V• Low Static Power• This is a Pb−Free DeviceApplic...

product image

NLAS4157 Picture
See larger image
SeekIC No. : 004434752 Detail

NLAS4157: Features: • Single Supply Operation: 1.65 V to 5.5 V VCC Function Directly from LiON Battery• Tiny SC88 6−Pin Pb−Free Package: Meets JEDEC MO−220 Specifications• ...

NLAS4157 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NLAS4157
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single Supply Operation: 1.65 V to 5.5 V VCC Function Directly from LiON Battery
• Tiny SC88 6−Pin Pb−Free Package: Meets JEDEC MO−220 Specifications
• RON Typical = 0.8 @ VCC = 4.5 V
• Low Static Power
• This is a Pb−Free Device


Application

• Cell Phone Speaker/Microphone Switching
• Ringtone−Chip/Amplifier Switching
• Stereo Balanced (Push−Pull) Switching


Pinout

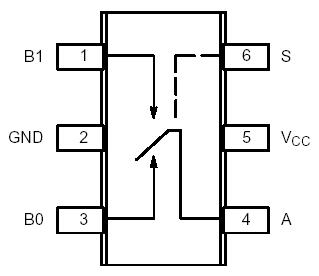

Connection Diagram


Specifications

Symbol Rating Value Unit
VCC Positive DC Supply Voltage −0.5 to +6.0 V
VIS Analog Input Voltage (VNO, VNC, or VCOM) −0.5 to VCC +0.5 V
VIN Digital Select Input Voltage −0.5 to +6.0 V
Ianl1 Continuous DC Current from COM to NC/NO ±300 mA
Ianl−pk1 Peak Current from COM to NC/NO, 10 Duty Cycles (Note 1) ±500 mA
Iclmp Continuous DC Current into COM/NC/NO with respect to VCC or GND ±100 mA

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. Defined as 10% ON, 90% off duty cycle.




Description

The NLAS4157 is a low RON SPDT analog switch. This device is designed for low operating voltage, high current switching of speaker output for cell phone applications. NLAS4157 can switch a balanced stereo output. The NLAS4157 can handle a balanced microphone/speaker/ringtone generator in a monophone mode. The device contains a break−before−make (BBM) feature.
