NLAS4052

Features: • Improved RDS(on) Specifications• Pin for Pin Replacement for MAX4052 and MAX4052A One Half the Resistance Operating at 5.0 Volts• Single or Dual Supply Operation Single 2.55 Volt Operation, or Dual ±3 Volt Operation With VCC of 3.0 to 3.3 V, Device Can Interface wi...

product image

NLAS4052 Picture
SeekIC No. : 004434749 Detail

NLAS4052: Features: • Improved RDS(on) Specifications• Pin for Pin Replacement for MAX4052 and MAX4052A One Half the Resistance Operating at 5.0 Volts• Single or Dual Supply Operation Sing...

floor Price/Ceiling Price

Part Number:
NLAS4052
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Improved RDS(on) Specifications
• Pin for Pin Replacement for MAX4052 and MAX4052A
   One Half the Resistance Operating at 5.0 Volts
• Single or Dual Supply Operation
   Single 2.55 Volt Operation, or Dual ±3 Volt Operation
   With VCC of 3.0 to 3.3 V, Device Can Interface with 1.8 V Logic,
   No Translators Needed
   Address and Inhibit pins are Logic is OverVoltage Tolerant and
   May Be Driven Up +6 V Regardless of VCC
• Address and Inhibit pins are Standard TTL Compatible
   Greatly Improved Noise Margin Over MAX4052 and MAX4052A
• Improved Linearity Over Standard HC4052 Devices
• Popular SOIC, and Space Saving TSSOP, and QSOP 16 Pin Packages



Pinout

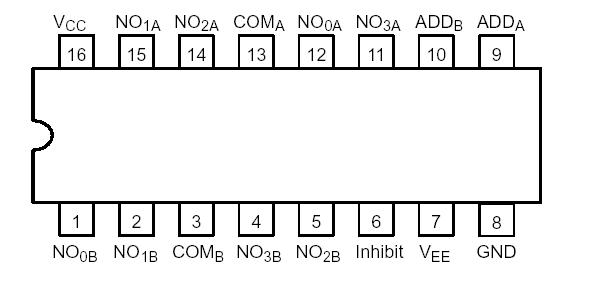

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage -0.5 to +7.0 V
VI DC Input Voltage −0.5 Vis + 7.0 V
VO DC Output Voltage Output in Higher or Low State (Note 1) −0.5 Vis + 0.5 V
IIK DC Input Diode Current VI < GND -50 mA
IOK DC Output Diode Current VO = GND
VO = VCC
-50

mA
IOU DC Output Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
IGND DC Ground Current per Ground Pin ±100 mA
TSTG Storage Temperature Range -65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature Under Bias +150 °C
JA Thermal Resistance SOT- 353 (Note 1)
SOT- 553
250 °C/W
PD Power Dissipation in Still Air at 85°C 250 mW
MSL Moisture Sensitivity Level 1
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V0 @ 0.125 in
VESD ESD Withstand Voltage Human Body Model (Note 2)
Machine Model (Note 3)
Charged Device Model (Note 4)
> 2000
200
N/A
V
ILatchUp LatchUp Performance Above VCC and Below GND at 85C (Note 5) ±300 mA

1. Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Extended exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximumrated conditions is not implied.
2. The absolute value of VCC |VEE| 3 7.0.
3. Tested to EIA/JESD22A114A.
4. Tested to EIA/JESD22A115A.
5. Tested to JESD22C101A.
6. Tested to EIA/JESD78.




Description

The NLAS4052 is an improved version of the MC14052 and MC74HC4052 fabricated in submicron Silicon Gate CMOS technology for lower RDS(on) resistance and improved linearity with low current. NLAS4052 may be operated either with a single supply or dual supply up to ±3 V to pass a 6 VPP signal without coupling capacitors.

When operating in single supply mode, NLAS4052 is only necessary to tie VEE, pin 7 to ground. For dual supply operation, VEE is tied to a negative voltage, not to exceed maximum ratings.
