NJU8714

Features: 􀁺` 2-channel 1bit Audio Signal Input􀁺` Stereo BTL Outputs􀁺` Output Power : Typ.150mW@8􀁺` BEEP Function􀁺` Standby Function􀁺` Output Driver Control Function􀁺` Operating Voltage VDD: 1.7V to 2.7VVDDO: 0V to 2.0VVG : 4.5V to 5.25...

product image

NJU8714 Picture
See larger image
SeekIC No. : 004434588 Detail

NJU8714: Features: 􀁺` 2-channel 1bit Audio Signal Input􀁺` Stereo BTL Outputs􀁺` Output Power : Typ.150mW@8􀁺` BEEP Function􀁺` Standby Function􀁺` Output Dri...

NJU8714 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJU8714
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁺` 2-channel 1bit Audio Signal Input
􀁺` Stereo BTL Outputs
􀁺` Output Power : Typ.150mW@8
􀁺` BEEP Function
􀁺` Standby Function
􀁺` Output Driver Control Function
􀁺` Operating Voltage VDD: 1.7V to 2.7V
                                   VDDO: 0V to 2.0V
                                      VG  : 4.5V to 5.25V
􀁺` CMOS Technology
􀁺` Package Outline :SSOP20-B2

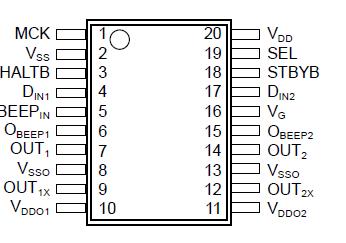

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS UNIT
Supply Voltage VDD -0.3 to +2.75 V
VG VDD to +5.5 V
VDDO -0.3 to +5.5 V
Input Voltage Vin −0.3 to VDD + 0.3 V
Operating Temperature Topr -40 to +85
Storage Temperature Tstg -40 to +125
Power Dissipation PD 450* mW

* : Mounted on two-layer board of based on the JEDEC.
Note.1) All voltage values are specified as VSS=0V.
Note.2) If the LSI is used on condition beyond the absolute maximum rating, the LSI may be destroyed. sing LSI within electrical characteristics is strongly recommended for normal operation. Use beyond he electrical characteristics conditions will cause malfunction and poor reliability.
Note.3) The relations of VDDO < VG must be maintained during operations.




Description

The NJU8714 is a stereo BTL outputs switching driver or class D amplifier. It receives PWM/PDM signals from SP outputs, and drives headphones or speakers by BTL utputs.

Output drivers of NJU8714 are composed of Series-Connected -channel FETs, and output voltage levels can be ontrolled by variable power supply with keeping all of nput signal information.

The NJU8714 incorporates BTL outputs amplifiers, hich eliminate AC coupling capacitors. Also, it provides SEL" terminal which selects "Synchronous" or Asynchronous". "Asynchronous" can be reduced the perating current. Therefore, NJU8714 is suitable for portable udio set and others.
