NJU8710

* : Mounted on two-layer board of based on the JEDEC.
Note 1) All voltage values are specified as V_SS=0V.
Note 2) If the LSI is used on condition beyond the absolute maximum rating, the LSI may be destroyed. Using LSI within electrical characteristics is strongly recommended for normal operation. Use beyond the electrical characteristics conditions will cause malfunction and poor reliability.
Note 3) De-coupling capacitors should be connected between VDD-VSS and VDDO-VSS due to the stabilized operation.

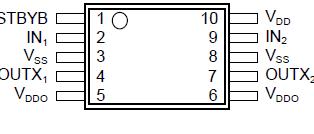

The NJU8710 is a 2V operation clock-less switching driver for a class D Amplifier with separated power supply between Input and Output.

The NJU8710 provides powerful drivability in both of sink and source without flow-through current. Therefore, it can be used to the buffer or the switch as a driver IC.

Furthermore NJU8710 converts 1bit digital signal input, such as PWM or PDM signal, to analog signal output of the hi-fi audio level through a simple external LC low-pass filter.

The NJU8710 realizes very high power-efficiency because of the class D operation and low voltage operation. Therefore, it is suitable for battery powered applications and others.
