NJU8713

Features: 􀁺 2-channel 1bit Audio Signal Input􀁺 Standby(Hi-Z), BPZ Control􀁺 Internal BPZ Charger􀁺 Beep Function􀁺 Operating Voltage : 1.7V to 2.7V􀁺 Driving Voltage : 1.7V to VDD􀁺 CMOS Technology􀁺 Package Outline : SSOP14PinoutSp...

product image

NJU8713 Picture
See larger image
SeekIC No. : 004434587 Detail

NJU8713: Features: 􀁺 2-channel 1bit Audio Signal Input􀁺 Standby(Hi-Z), BPZ Control􀁺 Internal BPZ Charger􀁺 Beep Function􀁺 Operating Voltage : 1.7V to 2.7V􀁺...

NJU8713 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJU8713
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁺 2-channel 1bit Audio Signal Input
􀁺 Standby(Hi-Z), BPZ Control
􀁺 Internal BPZ Charger
􀁺 Beep Function
􀁺 Operating Voltage  : 1.7V to 2.7V
􀁺 Driving Voltage       : 1.7V to VDD
􀁺 CMOS Technology
􀁺 Package Outline     : SSOP14


Pinout

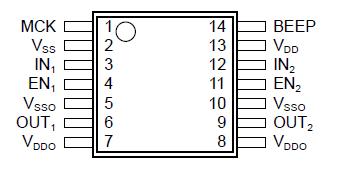

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Operation Supply Voltage VDD -0.3 to +4.0 V
Driving Supply Voltage VDDO -0.3 to +2.7 V
Input Voltage Vin -0.3 to VDD+0.3 V
Operating Temperature Range Topr -40 to +85
Storage Temperature Range Tstg -40 to +125
Power Supply Voltage Condition - VDD VDDO V
Power Dissipation SSOP14 PD 300 mW

Note 1) All voltage values are specified as VSS=VSSO=0V.
Note 2) If the LSI is used on condition beyond the absolute maximum rating, the LSI may be destroyed. Using LSI within electrical characteristics is strongly recommended for normal operation. Use beyond the electrical characteristics conditions will cause malfunction and poor reliability.
Note 3) Decoupling capacitors should be connected between VDD-VSS and VDDO-VSSO due to the stabilized operation.




Description

The NJU8713 is a Switching Driver for a class D Amplifier including Separated Power Source terminals between Input and Output, BEEP and BPZ (Bipolar Zero) output circuits. It converts 1bit digital signal input, such as PWM or PDM signal, to an analog signal output through a simple external LC low-pass filter.

The NJU8713 realizes very high power-efficiency because of the class D operation. Therefore, it is suitable for portable audio set and others.
