NJU6624C

Features: · 14-character 1-line Dot Matrix LCD Controller Driver· Maximum 70 Icon Display· Serial Direct Interface with Microprocessor· Display Data RAM - 14 x 8 bits : Maximum 14-character 1-line Display· Character Generator ROM - 7,840 bits : 224 Characters for 5 x 7 Dots· Character Generator RA...

product image

NJU6624C Picture
See larger image
SeekIC No. : 004434466 Detail

NJU6624C: Features: · 14-character 1-line Dot Matrix LCD Controller Driver· Maximum 70 Icon Display· Serial Direct Interface with Microprocessor· Display Data RAM - 14 x 8 bits : Maximum 14-character 1-line D...

NJU6624C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJU6624C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 14-character 1-line Dot Matrix LCD Controller Driver
· Maximum 70 Icon Display
· Serial Direct Interface with Microprocessor
· Display Data RAM - 14 x 8 bits : Maximum 14-character 1-line Display
· Character Generator ROM - 7,840 bits : 224 Characters for 5 x 7 Dots
· Character Generator RAM - 1,120 bits : 32 Patterns( 5 x 7 Dots )
· Ico· Display RAM - Maximum 70 Icons
· High Voltage LCD Driver : 8-common / 70-segment
· Duty and Bias Ratio : 1/8 duty, 1/4 bias
· Useful Instructio· Set : Clear Display, Address Home, Display ON/OFF Cont., Display Blink,
  - Address Shift, Character Shift, Keysca· ON/OFF Contn e.t.c.
· 32Key Input (4x8 keyscan)
· General output port (4 ports)
· Power O· Initialization / Hardware Reset
· Bleeder Resistance on-chip
· Software contrast control(16 step)
· Oscillation Circuit on-chip
· Low Power Consumption
· Operating Voltage --- 2.4 to 5.5 V
· Package Outline --- QFP 100
· C-MOS Technology


Pinout

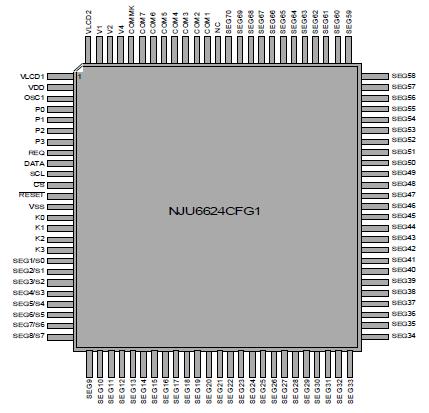

Connection Diagram


Specifications

Supply Voltage(1) V DD ....................................-0.3 to +7.0 V
Supply Voltage(2) V LCD .....1 V SS + 1 0 . 5 t o V SS + 0 . 3 V
Input Voltage V IN .....................................-0.3 to VDD+0.3 V
Operating Temperature Topr ......................- 4 0 t o + 8 5 oC
Storage Temperature Tstg ......................- 5 5 t o + 1 2 5 oC
Power Dissipation  P D ...........................................500 m W


Description

The NJU6624C is a Dot Matrix LCD controller driver for 14-character 1- line with icon display in single chip.

NJU6624C contains bleeder resistance, general output port, keyscan circuit, CR oscillator, microprocessor interface circuit, instruction decoder controller, character generator ROM/RAM, high voltage operation common and segment drivers, and others.

The character of NJU6624C generator ROM consisting of 7,840 bits stores 224 kinds of character Font. Each 1,120 bits CG RAM and Icon display RAM can store 32 kinds of special character displayed on the dot matrix display area or 70 kinds of Icon on the Icon display area.

The 8-common (7 for character, 1 for icon) and 70-segment drivers of NJU6624C operate 14-character 1-line with 70 Icon LCD display and LED driver drives 4 LED which can use like as indicator.

The 16th display contrast control function of NJU6624C is incorporated. Therefore, the contrast adjustment is operated easily by only simple power supply circuit on-chip.

The complete CR oscillator requires no external components.

The serial interface which operates by 1MHz, communicates with external MCU.
