Features:

` Drives Up to 4White LEDs in Series
    IOUT = 20mA(typical)
` Uses Small Inductor and Capacitors
` 1.7V to 6.5V Operating Voltage for Step-up Circuits (VDD)
` Low Switch RDS (ON)
    VSW = 18V, RDS=0.8 (ISW=150mA)
` OVP Function
` CMOS Technology
` Package : SOT-23 5 pin (MTP-5)


Pinout

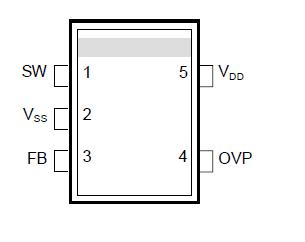

Connection Diagram


Specifications

PARAMETERS SYMBOL CONDITIONS RATINGS UNIT
VDD Power Supply VDD   -0.3 to +7.0 V
OVP Terminal to GND VOVP   -0.3 to 18.0V
SW Terminal Voltage VSW SW terminal -0.3 to +18.0 V
FB Terminal Voltage VFB FB terminal -0.3 to VDD V
Power Dissipation PD MTP-5 200 mW
Operating Temperature Topr   -40 to +85
Storage Temperature Tstg   -65 to +150



Description

The NJU6048 is a high-efficiency white LED driver. It contains a high-efficiency step-up DC/DC converter and an output driver. The IC can output max.18V and drive as many as 4 white LEDs in series with a constant current, which guarantees the LEDs with uniform brightness.

The high frequency of the step-up converter permits the use of small, low-profile inductors and capacitors to minimize the footprint in space-conscious applications. The NJU6048 also features low operating voltage of 1.7V and the small package SOT-23 (MTP-5).

All of these benefits make the NJU6048 suitable for the battery-powered portable applications such as cellular phones, camcorders, PDAs, etc.
