Features:

· LCD driving circuit :Max. 32outputs (4 outputs as for general purpose ports)
· Programmable Duty Ratio
   1/3 duty ratio :Driving max. 96 segments
   1/4 duty ratio :Driving max. 128 segments
· Programmable Bias Ratio :1/2, 1/3 bias ratio
· Serial Data Transfer :Shift clock max. 2MHz
· Built-in Oscillator :CR oscillation with external resistor, or external oscillation signal input.
· Display OFF :INHb pin
· Operating Voltage :3V / 5.0V
· C-MOS Technology :P-Sub
· Package Outline :QFN48


Pinout

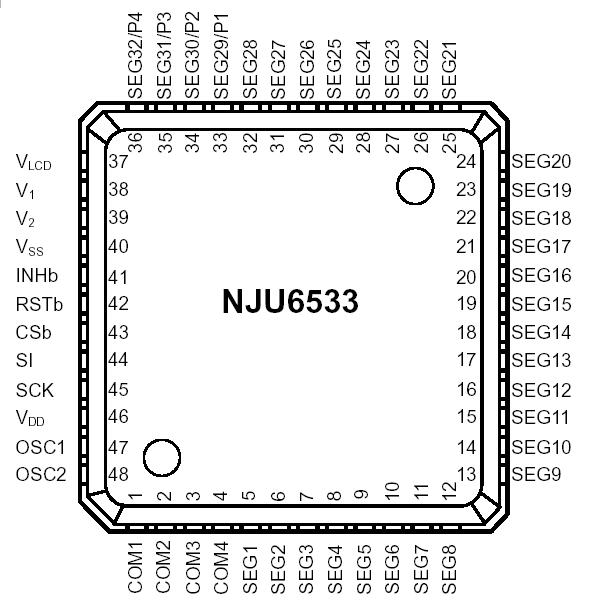

Connection Diagram


Description

NJU6533 is a 1/3 or 1/4 duty segment type LCD driver.

It incorporates 4 common driver circuits and 32 segment driver circuits. It can drive maximum 96 segments in 1/3 duty ratio and maximum 128 segments in 1/4 duty ratio. Controlled by MPU, NJU6533 can be used in many LCD applications
