NJU6050

Features: 􀁺· Drives Up to 8 White LEDs in Series VSW = 28V, IOUT = 20mA􀁺· Uses Small Inductor and Capacitors􀁺· 2.5V to 6.5V Operating Voltage for Step-up Circuits (VDD)􀁺· CMOS Technology􀁺· Package : SOT-23 5 pin (MTP-5)PinoutSpecifications PARAM...

product image

NJU6050 Picture
See larger image
SeekIC No. : 004434400 Detail

NJU6050: Features: 􀁺· Drives Up to 8 White LEDs in Series VSW = 28V, IOUT = 20mA􀁺· Uses Small Inductor and Capacitors􀁺· 2.5V to 6.5V Operating Voltage for Step-up Circuits (VDD)&#...

NJU6050 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJU6050
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁺· Drives Up to 8 White LEDs in Series
        VSW = 28V, IOUT = 20mA
􀁺· Uses Small Inductor and Capacitors
􀁺· 2.5V to 6.5V Operating Voltage for Step-up Circuits (VDD)
􀁺· CMOS Technology
􀁺· Package : SOT-23 5 pin (MTP-5)


Pinout

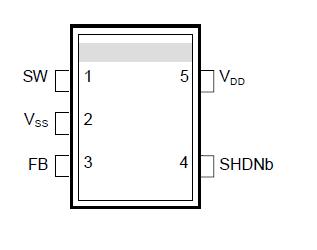

Connection Diagram


Specifications

PARAMETERS SYMBOL CONDITIONS RATINGS UNIT
VDD Power Supply VDD   -0.3 to +7.0 V
SHDNb Terminal Voltage VSHDNb SHDNb terminal -0.3 to +7.0 V
SW Terminal Voltage VSW SW terminal -0.3 to +30.0 V
FB Terminal Voltage VFB FB terminal -0.3 to VDD V
Power Dissipation PD MTP-5 200 mW
Operating Temperature Topr   -40 to +85
Storage Temperature Tstg   -65 to +150

Note1) All voltages are relative to VSS = 0V reference.
Note2) Do not exceed the absolute maximum ratings, otherwise the stress may cause a permanent damage to the IC. It is also recommended that the IC be used in the range specified in the DC electrical characteristics, or the electrical stress may cause mulfunctions and impact on the reliability.




Description

The NJU6050 is a high-efficiency white LED driver. It contains a high-efficiency step-up DC/DC converter and an  output driver. The IC NJU6050 ensures a 28V maximum capacity which allows series connection of 8 white LEDs with a constant current so that the LED currents are identical for uniform brightness.

The high frequency of the step-up converter NJU6050 permits the use of small, low-profile inductors and capacitors to minimize the footprint in space-conscious applications. And additional features are a low operating voltage of 2.5V and the small package SOT-23 (MTP-5).

All of these benefits make the NJU6050 suitable for the battery-powered portable applications such as a cellular phone, a camcorder, PDA, etc.
