NID5003N

Features: • Short Circuit Protection/Current Limit• Thermal Shutdown with Automatic Restart• IDSS Specified at Elevated Temperature• Avalanche Energy Specified• Slew Rate Control for Low Noise Switching• Overvoltage Clamped ProtectionPinoutSpecifications Ra...

product image

NID5003N Picture
See larger image
SeekIC No. : 004433778 Detail

NID5003N: Features: • Short Circuit Protection/Current Limit• Thermal Shutdown with Automatic Restart• IDSS Specified at Elevated Temperature• Avalanche Energy Specified• Slew Ra...

NID5003N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NID5003N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Short Circuit Protection/Current Limit
• Thermal Shutdown with Automatic Restart
• IDSS Specified at Elevated Temperature
• Avalanche Energy Specified
• Slew Rate Control for Low Noise Switching
• Overvoltage Clamped Protection


Pinout

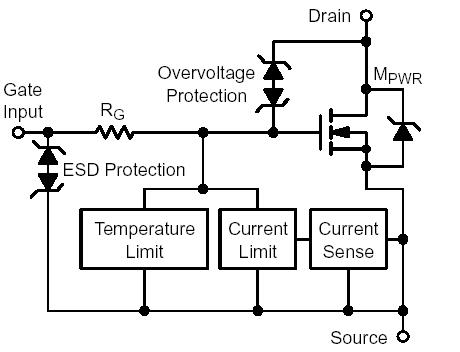

Connection Diagram


Specifications

Rating Symbol Value Unit
Drain−to−Source Voltage Internally Clamped VDSS 42 Vdc
Gate−to−Source Voltage VGS ±14 Vdc
Drain Current Continuous ID Internally Limited
Total Power Dissipation
@ TA = 25°C (Note 1)
@ TA = 25°C (Note 2)		 PD 1.3
2.3		 W
Thermal Resistance
Junction−to−Case
Junction−to−Ambient (Note 1)
Junction−to−Ambient (Note 2)		 RJC
RJA
RJA		 3.0
95
54		 °C/W
Single Pulse Drain−to−Source Avalanche Energy
(VDD = 25 Vdc, VGS = 5.0 Vdc,
IL = 3.2 Apk, L = 120 mH, RG = 25)		 EAS 600 mJ
Operating and Storage Temperature Range (Note 3) TJ, Tstg −55 to 150 °C



Description

HDPlurTM devices are an advanced series of power MOSFETs NID5003N which utilize ON Semiconductors latest MOSFET technology process to achieve the lowest possible on−resistance per silicon area while incorporating smart features. Integrated thermal and current limits work together to provide short circuit protection. The NID5003N feature an integrated Drain−to−Gate Clamp that enables them to withstand high energy in the avalanche mode. The Clamp also provides additional safety margin against unexpected voltage transients. Electrostatic Discharge (ESD) protection is provided by an integrated Gate−to−Source Clamp.
