NE558

Packaging :
Maximum Power Dissipation : 600 mW
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Type : Standard
Supply Voltage - Max : 16 V
Supply Voltage - Min : 4.5 V
Number of Internal Timers : 4
Package / Case : PDIP W


Features:

• 100mA output current per section
• Edge-triggered (no coupling capacitor)
• Output independent of trigger conditions
• Wide supply voltage range 4.5V to 16V
• Timer intervals from microseconds to hours
• Time period equals RC
• Military qualifications pending


Application

• Sequential timing
• Time delay generation
• Precision timing
• Industrial controls
• Quad one-shot

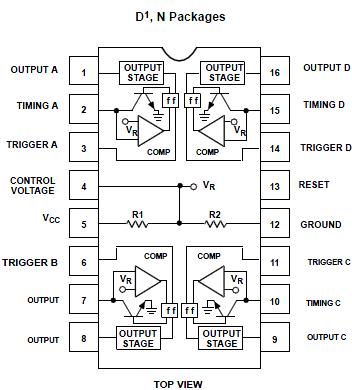

Pinout




Specifications

SYMBOL	PARAMETER	RATING	UNIT
VCC	Supply voltage	+16	V
PD	Maximum power dissipation TA=25°C ambient (still-air)1
	N package	1450	mW
	D package	1090	mW
TA	Operating ambient temperature range	0 to +70	°C
TSTG	Storage temperature range	-65 to +150	°C
TSOLD	Lead soldering temperature (10sec max)	+300	°C

NOTES:
1. Derate above 25°C, at the following rates:
N package at 11.6mW/°C
D package at 8.7mW/°C


Description

The 558 Quad Timers are monolithic timing devices which can be sed to produce four independent timing functions. The 558 output inks current. These highly stable, general purpose controllers can e used in a monostable mode to produce accurate time delays; rom microseconds to hours. In the time delay mode of operation, he time is precisely controlled by one external resistor and one apacitor. A stable operation can be achieved by using two of the our timer sections.
The four timer sections in the 558 are edge-triggered; therefore, hen connected in tandem for sequential timing pplications, no oupling capacitors are required. Output current capability of 100mA s provided in both devices.
