Product Details

Description

Features:

• Micro-miniature (D) package
• Pulse-width modulator
• Current limiting (cycle-by-cycle)
• Sawtooth generator
• Stabilized power supply
• Double pulse protection
• Internal temperature-compensated reference

Application

• Switched-mode power supplies
• DC motor controller inverter
• DC/DC converter

Pinout

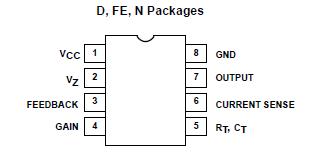

Connection Diagram

Specifications

SYMBOL	PARAMETER	RATING	UNIT
V_CC	Supply¹ Voltage-forced mode	+18	V
	Current-fed mode	30	mA
	Output transistor (at 20-30V max)
I_OUT	Output current	40	mA
V_OUT	Output voltage	V_CC+1.4V	V
	Output duty cycle	98	%
P_D	Maximum total power dissipation	0.75	W
T_A	Operating temperature range
	SE5561	-55 to +125	°C
	NE5561	0 to 70	°C

NOTES:
1. See Voltage-Current-fed supply characteristic curve.

Description

The NE5561/SE5561 is a control circuit for use in switched-mode power supplies. It contains an internal temperature- compensated supply, PWM, sawtooth oscillator, overcurrent sense latch, and output stage. The NE5561/SE5561 is intended for low cost SMPS applications where extensive housekeeping functions are not required.
