Product Details

Description

Features:

• Stabilized power supply
• Temperature-compensated reference source
• Sawtooth generator
• Pulse-width modulator
• Remote on/off switching
• Current limiting
• Low supply voltage protection
• Loop fault protection
• Demagnetization/overvoltage protection
• Maximum duty cycle clamp
• Feed-forward control
• External synchronization

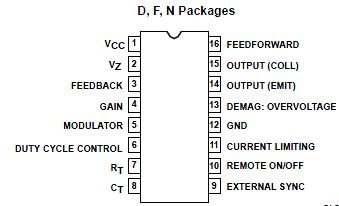

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	RATING	UNIT
V_CC	Supply1 Voltage-forced mode	+18	V
I_CC	Current-fed mode	30	mA
	Output transistor (at 20-30V max)
I_OUT	Output current	40	mA
	Collector voltage (Pin 15)	VCC+1.4V	V
	Max. emitter voltage (Pin 14)	+5	V
T_A	Operating ambient temperature range
	SE5560	-55 to +125	°C
	NE5560	0 to 70	°C
T_STG	Storage temperature range	-65 to +150	°C

NOTES:
1. Does not include current for timing resistors or capacitors.

Description

The NE/SE5560 is a control circuit for use in switched-mode power supplies. This single monolithic chip incorporates all the control and housekeeping (protection) functions required in switched-mode power supplies, NE/SE5560 including an internal temperature-compensated reference source, internal Zener references, sawtooth generator, pulse-width modulator, output stage and various protection circuits.
