NE5514

Features: • Low input bias current: < ±3nA• Low input offset current: < ±3nA• Low input offset voltage:<1mV• Low supply current: 1.5mA/A• 1V/ms slew rate• High input impedance: 100MW• High common-mode impedance: 10GW• Internal compensation f...

product image

NE5514 Picture
See larger image
SeekIC No. : 004433377 Detail

NE5514: Features: • Low input bias current: < ±3nA• Low input offset current: < ±3nA• Low input offset voltage:<1mV• Low supply current: 1.5mA/A• 1V/ms slew rate•...

NE5514 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NE5514
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low input bias current: < ±3nA
• Low input offset current: < ±3nA
• Low input offset voltage:<1mV
• Low supply current: 1.5mA/A
• 1V/ms slew rate
• High input impedance: 100MW
• High common-mode impedance: 10GW
• Internal compensation for unity gain
• 600W drive capability (7VRMS)


Application

• AC amplifiers
• RC active filters
• Transducer amplifiers
• DC gain block
• Instrumentation amplifier


Pinout

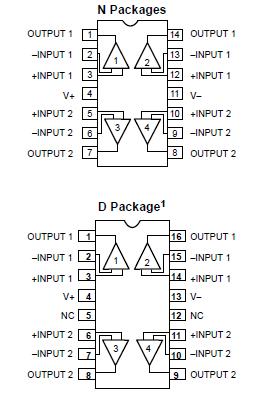

Connection Diagram


Specifications

SYMBOL PARAMETER
RATING
UNIT
VCC Supply voltage
±16
V
VDIFF Differential input voltage
32
V
VIN Input voltage
0 to 32
V
  Output short to ground
Continuous
TSTG Storage temperature range
-65 to +150
°C
TSOLD Lead soldering temperature (10sec max)
300
°C
TA Operating ambient temperature range
  NE5514
0 to 70
°C
  SE5514
-55 to +125
°C
PMAX Maximum power dissipation TA=25°C (still-air)1
  N package
1420
mW
  D package
1250
mW
NOTES:
1. The following derating factors should be applied above 25°C
    N ckage at 11.4mW/°C
    D ckage at 10.0mW/°C


Description

The NE/SE5514 family of quad operational amplifiers sets new tandards in bipolar quad amplifier performance. The amplifiers eature low input bias current and low offset voltages. Pinout is dentical to LM324/LM348 which facilitates direct product ubstitution for improved system performance in dual supply pplications. Output characteristics are similar to a mA741 with mproved slew and drive capability.
