NDH832P

Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Drain-Source Breakdown Voltage : - 20 V
Maximum Operating Temperature : + 150 C
Gate-Source Breakdown Voltage : - 8 V
Resistance Drain-Source RDS (on) : 0.06 Ohms
Package / Case : SSOT-8
Configuration : Single Quint Drain Dual Source
Continuous Drain Current : - 4.2 A


Features:

`-4.2A, -20V. R<sub>DS(ON)</sub> = 0.06 @ V<sub>GS</sub> = -4.5V R<sub>DS(ON)</sub> = 0.08 @ V<sub>GS</sub> = -2.7V.
`High density cell design for extremely low RDS(ON).
`Enhanced SuperSOT<sup>TM</sup>-8 small outline surface mount
`package with high power and current handling capability.

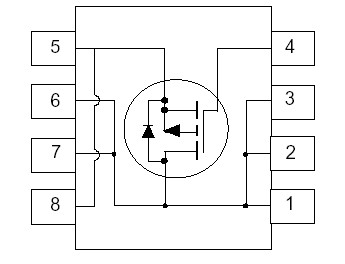

Pinout




Specifications

Symbol	Parameter		NDH832P	Units
VDSS VGSS	Drain-Source Voltage Gate-Source Voltage		-20 -8 -4.2 -15 1.8 1 0.9 -55 to 150	V V A W °C
ID	Drain Current Continuous Pulsed	(Note 1a)
PD	Maximum Power Dissipation	(Note 1a) (Note 1b) (Note 1c)
TJ,TSTG	Operating and Storage Temperature Range

THERMAL CHARACTERISTICS
</tabl

RJA RJC

Thermal Resistance, Junction-to-Ambient Thermal Resistance, Junction-to-Case

(Note 1a) (Note 1)

70 20

°C/W °C/W

Description

These P-Channel enhancement mode power field effect transistors NDH832P are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. NDH832P is particularly suited for low voltage applications such as notebook computer power management and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.

Parameters:

Technical/Catalog Information	NDH832P
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	4.2A
Rds On (Max) @ Id, Vgs	60 mOhm @ 4.2A, 4.5V
Input Capacitance (Ciss) @ Vds	1000pF @ 10V
Power - Max	900mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	30nC @ 4.5V
Package / Case	SSOT-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NDH832P NDH832P
