Product Details

Description

Pinout

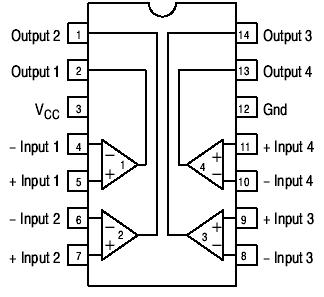

Connection Diagram

Specifications

Rating	Symbol	Value	Unit
Power Supply Voltage LM239/LM339/LM2901, V MC3302	V_CC	+36 or ±18 +30 or ±15	Vdc
Input Differential Voltage Range LM239/LM339/LM2901, V MC3302	V_IDR	36 30	Vdc
Input Common Mode Voltage Range	V_ICMR	-0.3 to V_CC	Vdc
Output Short Circuit to Ground (Note 1)	I_SC	Continuous
Power Dissipation @ TA = 25°C Plastic Package Derate above 25°C	P_D1/R_JA	1.0 8.0	W mW/°C
Junction Temperature	T_J	150	°C
Operating Ambient Temperature Range LM239 MC3302 LM2901 LM2901V, NCV2901 LM339	T_A	-25 to +85 -40 to +85 -40 to +105 -40 to +125 0 to +70	°C
Storage Temperature Range	T_stg	-65 to +150	°C
