NCP5603

Features: • Wide Battery Supply Voltage Range: 2.7 < VCC < 5.5 V• Automatic Operating Mode 1X, 1.5X and 2X Improves Efficiency• Dimmable Output Current• Up to 350 mA Output Pulsed Current• Selectable Output Voltage• High Efficiency Up To 90%• Support...

product image

NCP5603 Picture
See larger image
SeekIC No. : 004433051 Detail

NCP5603: Features: • Wide Battery Supply Voltage Range: 2.7 < VCC < 5.5 V• Automatic Operating Mode 1X, 1.5X and 2X Improves Efficiency• Dimmable Output Current• Up to 350 mA Ou...

NCP5603 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP5603
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide Battery Supply Voltage Range: 2.7 < VCC < 5.5 V
• Automatic Operating Mode 1X, 1.5X and 2X Improves Efficiency
• Dimmable Output Current
• Up to 350 mA Output Pulsed Current
• Selectable Output Voltage
• High Efficiency Up To 90%
• Supports 2.5 kV ESD, Human Body Model
• Supports 200 V Machine Model ESD
• Low 40 mA Short Circuit Current
• Pb−Free Package is Available


Application

• High Power LED
• Back Light Display
• High Power Flash


Pinout

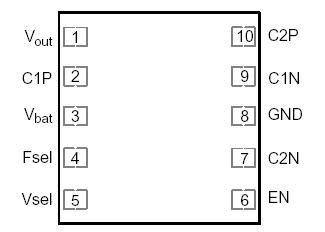

Connection Diagram


Specifications

Rating Symbol Value Unit
Power Supply Voltage Vbat 7.0 V
Power Supply Current Ibat 800 mA
Digital Input Pins Vin −0.5 V < Vbat < Vbat +0.5 V < 6.0 V V
Digital Input Pins Iin 5.0 mA
Output Voltage Vout 5.5 V
ESD Capability (Note 3)
Human Body Model
Machine Model		 VESD 2.5
200		 kV
V
QFN10, 3x3 Package
Power Dissipation @ Tamb = +85°C
Thermal Resistance, Junction−to−Air (RJA)		 PDS
RJA		 580
68.5		 mW
°C/W
Operating Ambient Temperature Range TA −40 to +85 °C
Operating Junction Temperature Range TJ −40 to +125 °C
Maximum Junction Temperature TJmax +150 °C
Storage Temperature Range Tstg −65 to +150 °C
Latchup Current Maximum Rating   100 mA per JEDEC standard, JESD78
Moisture Sensitivity Level (MSL)   1 per IPC/JEDEC standard, J−STD−020A
