NCP5210

Features: • Incorporates Synchronous PWM Buck Controllers for VDDQ and VMCH• Integrated Power FETs with VTT Regulator Source/Sink up to 1.8 A• All External Power MOSFETs are N−channel• Adjustable VDDQ and VMCH by External Dividers• VTT Tracks at Half the Referen...

product image

NCP5210 Picture
See larger image
SeekIC No. : 004433033 Detail

NCP5210: Features: • Incorporates Synchronous PWM Buck Controllers for VDDQ and VMCH• Integrated Power FETs with VTT Regulator Source/Sink up to 1.8 A• All External Power MOSFETs are Nͨ...

NCP5210 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP5210
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Incorporates Synchronous PWM Buck Controllers for VDDQ and VMCH
• Integrated Power FETs with VTT Regulator Source/Sink up to 1.8 A
• All External Power MOSFETs are N−channel
• Adjustable VDDQ and VMCH by External Dividers
• VTT Tracks at Half the Reference Voltage
• Fixed Switching Frequency of 250 kHz for VDDQ and VMCH
• Doubled Switching Frequency (500 kHz) for VDDQ Controller in Standby Mode to Optimize Inductor Current Ripple and Efficiency
• Soft−start Protection for all Controllers
• Under−Voltage Monitor of Supply Voltages
• Over−Current Protections for DDQ and VTT Regulators
• Fully Complies with ACPI Power Sequencing Specifications
• Short Circuit Protection Prevents Damage to Power Supply Due to Reverse DIMM Insertion
• Thermal Shutdown
• 20−Lead 5x6 QFN Package


Pinout

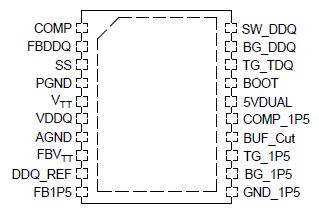

Connection Diagram


Specifications

Rating Symbol Value Unit
Power Supply Voltage (Pin 16) to AGND (Pin 7) 5VDUAL −0.3, 6.0
Gate Drive Voltage (Pin 12, 13, 17−19) to AGND (PIN 7) VCC, Vg −0.3, 14 V
Input / Output Pins to AGND (Pin 7)

Pin 1−6, 8−11, 14−16, 20		 VIO −0.3, 6.0 V
Thermal Characteristics

QFN−20 Plastic Package

Thermal Resistance Junction to Air		 RJA 35(TBD) V
Operating Junction Temperature Range TJ 0 to + 150 °C/W
Operating Ambient Temperature Range TA 0 to + 70 °C
Storage Temperature Range Tstg − 55 to +150 °C
Moisture Sensitivity Level MSL 2 °C


1. This device series contains ESD protection and exceeds the following tests: Human Body Model (HBM) 2.0 kV per JEDEC standard: JESD22A114. Machine Model (MM) 200 V per JEDEC standard: JESD22A115.
2. Latchup Current Maximum Rating: 150 mA per JEDEC standard: JESD78.




Description

The NCP5210, 3−In−1 PWM Dual Buck and Linear DDR Power Controller, is a complete power solution for MCH and DDR memory. This IC combines the efficiency of PWM controllers for the VDDQ supply and the MCH core supply voltage with the simplicity of linear regulator for the VTT termination voltage.

This IC of the NCP5210 contains two synchronous PWM buck controller for driving four external NFETs to form the DDR memory supply voltage (VDDQ) and the MCH regulator. The DDR memory termination regulator (VTT) is designed to track at the half of the reference voltage with sourcing and sinking current.

Protective features of the NCP5210 include, soft−start circuitry, under−voltage monitoring of 5VDUAL, and BOOT voltage, and thermal shutdown. The IC is packaged in QFN−20.
