NCP511SN33TI

Features: • Low Quiescent Current of 40 A Typical• Low Dropout Voltage of 100 mV at 100 mA• Excellent Line and Load Regulation• Maximum Operating Voltage of 6.0 V• Low Output Voltage Option• High Accuracy Output Voltage of 2.0%• Industrial Temperature Ran...

product image

NCP511SN33TI Picture
See larger image
SeekIC No. : 004433027 Detail

NCP511SN33TI: Features: • Low Quiescent Current of 40 A Typical• Low Dropout Voltage of 100 mV at 100 mA• Excellent Line and Load Regulation• Maximum Operating Voltage of 6.0 V• Low...

NCP511SN33TI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP511SN33TI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Quiescent Current of 40 A Typical
• Low Dropout Voltage of 100 mV at 100 mA
• Excellent Line and Load Regulation
• Maximum Operating Voltage of 6.0 V
• Low Output Voltage Option
• High Accuracy Output Voltage of 2.0%
• Industrial Temperature Range of −40°C to 85°C
• Pb−Free Packages are Available


Application

• Cellular Phones
• Battery Powered Instruments
• Hand−Held Instruments
• Camcorders and Cameras


Pinout

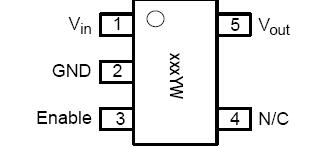

Connection Diagram


Specifications

Rating Symbol Value Unit
Input Voltage Vin 0 to 6.0 v
Enable Voltage Enable −0.3 to Vin +0.3 v
Output Voltage Vout −0.3 to Vin +0.3 v
Power Dissipation Pd
RJA		 Interally limited
250
 W
°C/W
Operating Junction Temperature TJ +125
Operating Junction TempÁerat TA -40TO+85 °C
StoÁrage Temperature Tstg -65to+150 °C
1. This device series contains ESD protection and exceeds the following tests:
Human Body Model 2000 V per MIL−STD−883, Method 3015
Machine Model Method 200 V
2. Latch up capability (85°C) 100 mA DC with trigger voltage.


Description

The NCP511 series of fixed output low dropout linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent current. The NCP511 series features an ultra−low quiescent current of 40 A. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits.

The NCP511 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 1.0 F. The device is housed in the micro−miniature TSOP−5 surface mount package. Standard voltage versions are 1.5 V, 1.8 V, 2.5 V, 2.7 V, 2.8 V, 3.0 V, 3.3 V, and 5.0 V. Other voltages are available in 100 mV steps.
