NCP3063

Features: • Operation from 3.0 V to 40 V Input• Low Standby Current• Output Switch Current to 1.5 A• Output Voltage Adjustable• Frequency Operation of 150 kHz• Precision 1.5% Reference• New Features: Internal Thermal Shutdown with Hysteresis New Features: ...

product image

NCP3063 Picture
See larger image
SeekIC No. : 004432999 Detail

NCP3063: Features: • Operation from 3.0 V to 40 V Input• Low Standby Current• Output Switch Current to 1.5 A• Output Voltage Adjustable• Frequency Operation of 150 kHz• Pr...

NCP3063 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP3063
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operation from 3.0 V to 40 V Input
• Low Standby Current
• Output Switch Current to 1.5 A
• Output Voltage Adjustable
• Frequency Operation of 150 kHz
• Precision 1.5% Reference
• New Features: Internal Thermal Shutdown with Hysteresis New Features: Cycle−by−Cycle Current Limiting
• Pb−Free Packages are Available


Application

• Step−Down, Step−Up and Inverting supply applications
• High Power LED Lighting
• Battery Chargers


Pinout

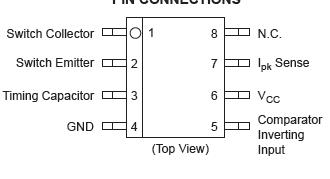

Connection Diagram


Specifications

Rating Symbol Value Unit
VCC pin 6 VCC 0 to +40 V
Comparator Inverting Input pin 5 VCII − 0.2 to + VCC V
Darlington Switch Collector pin 1 VSWC 0 to +40 V
Darlington Switch Emitter pin 2 (transistor OFF) VSWE − 0.6 to + VCC V
Darlington Switch Collector to Emitter pin 1−2 VSWCE 0 to +40 V
Darlington Switch Current ISW 1.5 A
Ipk Sense pin 7 VIPK − 0.2 to VCC + 0.2 V
