NC7NZU04

Features: `Space saving US8 surface mount package` MicroPakTM leadless package`Unbuffered for crystal oscillator and analog applications` Balanced Output Drive; ± 8 mA at 4.5V VCC` Broad VCC Operating Range: 1.65V to 5.5V` Low Quiescent Power; ICC < 1 A, VCC = 5.5V, TA = 25°CPinoutSpecification...

product image

NC7NZU04 Picture
See larger image
SeekIC No. : 004432766 Detail

NC7NZU04: Features: `Space saving US8 surface mount package` MicroPakTM leadless package`Unbuffered for crystal oscillator and analog applications` Balanced Output Drive; ± 8 mA at 4.5V VCC` Broad VCC Operati...

NC7NZU04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NC7NZU04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Space saving US8 surface mount package
` MicroPakTM leadless package
`Unbuffered for crystal oscillator and analog applications
` Balanced Output Drive; ± 8 mA at 4.5V VCC
` Broad VCC Operating Range: 1.65V to 5.5V
` Low Quiescent Power; ICC < 1 A, VCC = 5.5V, TA = 25°C


Pinout

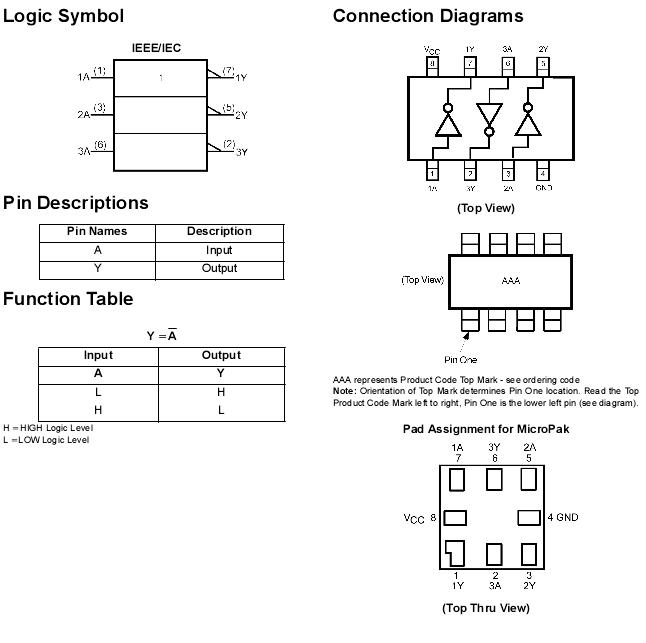

Connection Diagram


Specifications

Supply Voltage (VCC) ..............−0.5V to +7V
DC Input Voltage (VIN) ............. −0.5V to +7V
DC Output Voltage (VOUT)  ...........−0.5V to +7V
DC Input Diode Current (IIK)
@ VIN < −0.5V  ....................−50 mA
@ VIN > VCC + 0.5V.................. +20 mA
DC Output Diode Current (IOK)
@ VOUT < −0.5V   ...................−50 mA
@ VOUT > 0.5V, VCC = GND .............. +50 mA
DC Output Current (IOUT) ...............±50 mA
DC VCC/GND Current (ICC/IGND) ...........±100 mA
Storage Temperature (TSTG) ........−65°C to +150°C
Junction Temperature under Bias (TJ) ..........150°C
Junction Lead Temperature (TL);
(Soldering, 10 seconds) .................260°C
Power Dissipation (PD) @ +85°C ........... 250 mW


Description

The NC7NZU04 is a triple unbuffered inverter from Fairchild's Ultra High Speed Series of TinyLogic. The special purpose unbuffered circuit design is primarily intended for crystal oscillator or analog applications. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The NC7NZU04 is specified to operate over the 1.65V to 5.5V VCC range.
