Features:

`Space saving US8 package
` Ultra small MicroPakTM Pb-Free package
` 0.9V to 3.6V VCC supply operation
` 3.6V overvoltage tolerant I/O's at VCC from 0.9V to 3.6V
` tPD
   4.0 ns typ for 3.0V to 3.6V VCC
   5.0 ns typ for 2.3V to 2.7V VCC
   6.0 ns typ for 1.65V to 1.95V VCC
   7.0 ns typ for 1.40V to 1.60V VCC
   11.0 ns typ for 1.10V to 1.30V VCC
   27.0 ns typ for 0.90V VCC
` Power-Off high impedance inputs and outputs
` Static Drive (IOH/IOL)
   ±2.6 mA @ 3.00V VCC
   ±2.1 mA @ 2.30V VCC
   ±1.5 mA @ 1.65V VCC
   ±1.0 mA @ 1.40V VCC
   ±0.5 mA @ 1.10V VCC
   ±20 A @ 0.9V VCC
` Low noise switching using design techniques of Quiet SeriesTM noise/EMI reduction circuitry
` Ultra low dynamic power


Pinout

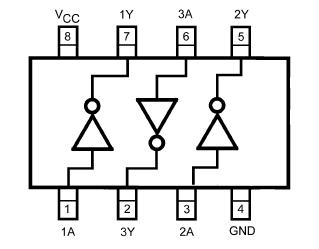

Connection Diagram


Specifications

Supply Voltage (VCC) ..................−0.5V to +4.6V
DC Input Voltage (VIN) ..................−0.5V to +4.6V
DC Output Voltage (VOUT)
HIGH or LOW State (Note 2)............. −0.5V to VCC +0.5V
VCC = 0V ..........................−0.5V to 4.6V
DC Input Diode Current (IIK) VIN < 0V ..............±50 mA
DC Output Diode Current (IOK)
VOUT < 0V ............................−50 mA
VOUT > VCC ............................+50 mA
DC Output Source/Sink Current (IOH/IOL)............ ± 50 mA
DC VCC or Ground Current per
Supply Pin (ICC or Ground) ....................± 50 mA
Storage Temperature Range (TSTG) ..........−65°C to +150°C


Description

The NC7NP04 is a triple inverter from Fairchild's Ultra Low Power (ULP) Series of TinyLogic®. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V.

The internal circuit is composed of a minimum of inverter stages including the output buffer, to enable ultra low static and dynamic power.The NC7NP04 is designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve high speed, low noise operation while maintaining extremely low CMOS power dissipation.
