Product Details

Description



Features:

·Space saving US8 surface mount package
· MicroPakTM leadless package
· Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC
· High Output Drive; ±24 mA at 3V VCC
· Broad VCC Operating Range: 1.65V to 5.5V
· Power down high impedance inputs/output
· Overvoltage tolerant inputs facilitate 5V to 3V translation
· Patented noise/EMI reduction circuitry implemented


Pinout

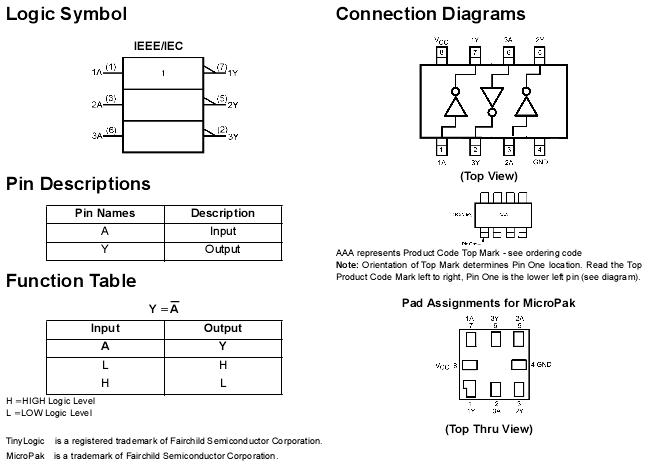

Connection Diagram


Specifications

Supply Voltage (VCC) ..................−0.5V to +7V
DC Input Voltage (VIN)................. −0.5V to +7V
DC Output Voltage (VOUT)  ...............−0.5V to +7V
DC Input Diode Current (IIK)
@VIN < .........................−0.5V −50 mA
@ VIN > 6V  ..........................+20 mA
DC Output Diode Current (IOK)
@VOUT < −0.5V ........................−50 mA
@ VOUT > 6V, VCC = GND  ...................+20 mA
DC Output Current (IOUT) ...................±50 mA
DC VCC/GND Current (ICC/IGND) ................±50 mA
Storage Temperature (TSTG) ............−65°C to +150°C
Junction Temperature under Bias (TJ).............. 150°C
Junction Lead Temperature (TL)
(Soldering, 10 seconds) .....................260°C
Power Dissipation (PD) @ +85°C ............... 250 mW


Description

The NC7NZ04 is a triple inverter from Fairchild's Ultra High Speed Series of TinyLogic®. The NC7NZ04 is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The NC7NZ04 is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage.
