MXL1544

Features: ` MXL1544/MAX3175, MXL1543, MXL1344A Chipset Is Pin Compatible with LTC1544, LTC1543, LTC1344A Chipset` Chipset Operates from a Single +5V Supply` Software-Selectable DCE/DTE` Supports V.28 (RS-232), V.10/V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21, RS-423) Protocols` Flow-Through Pin Con...

product image

MXL1544 Picture
See larger image
SeekIC No. : 004431969 Detail

MXL1544: Features: ` MXL1544/MAX3175, MXL1543, MXL1344A Chipset Is Pin Compatible with LTC1544, LTC1543, LTC1344A Chipset` Chipset Operates from a Single +5V Supply` Software-Selectable DCE/DTE` Supports V.2...

MXL1544 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MXL1544
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` MXL1544/MAX3175, MXL1543, MXL1344A Chipset Is Pin Compatible with LTC1544, LTC1543, LTC1344A Chipset
` Chipset Operates from a Single +5V Supply
` Software-Selectable DCE/DTE
` Supports V.28 (RS-232), V.10/V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21, RS-423) Protocols
` Flow-Through Pin Configuration
` True Fail-Safe Operation
` Low 0.5A Shutdown Current (No-Cable Mode)
` 10s Receiver Input Deglitching (MAX3175 Only)
` TUV-Certified NET1/NET2 and TBR1/TBR2 Compliant


Application

·Data Networking
·CSU and DSU
·Data Routers
·Switches
·PCI Cards
·Telecommunication Equipment

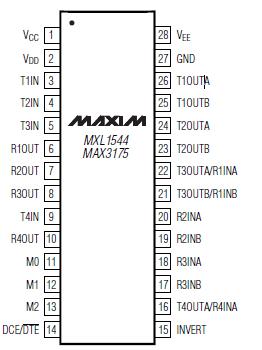

Pinout

Connection Diagram


Specifications

All Voltages to GND Unless Otherwise Noted
Supply Voltages
VCC.......................................................................-0.3V to +6V
VDD....................................................................-0.3V to +7.2V
VEE.......................................................................+0.3V to -7V
VDD to VEE (Note 1)............................................................13V
Logic Input Voltage
M0, M1, M2, DCE/DTE, INVERT, T_IN.....................-0.3V to +6V
Logic Output Voltage
R_OUT.....................................................-0.3V to (VCC + 0.3V)
Transmitter Outputs
T_OUT_, T_OUT_/R_IN........................................-15V to +15V
Short-Circuit Duration............................................Continuous
Receiver Inputs
R_IN_, T_OUT_/R_IN_ ........................................-15V to +15V
Continuous Power Dissipation (TA = +70)
28-Pin SSOP (derate 11.1mW/ above +70) ..........889mW
Operating Temperature Range.............................0 to +70
Junction Temperature...................................................+150
Storage Temperature Range ..........................-65 to +150
Lead Temperature (soldering, 10s) ..............................+300
Note 1: VDD and VEE- can have maximum magnitude of 7.2V and 7V, respectively, but their difference cannot exceed 13V.


Description

multiprotocol transceivers that operate from a single +5V supply in conjunction with the MXL1543. The MXL1544/MAX3175, along with the MXL1543 and MXL1344A, form a complete software-selectable data terminal equipment (DTE) or data communication equipment (DCE) interface port that supports the V.28 (RS-232), V.10/V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21, RS-423), and V.35 protocols. The MXL1544/ MAX3175 transceivers carry serial interface control signaling, while the MXL1543 carries the high-speed clock and data signals. Typically, the MXL1543 is terminated using the MXL1344A. The MAX3175 is identical to the MXL1544 except for the addition of a 10s (typ) glitch rejection circuit at the receiver inputs. The MXL1544/ MAX3175 are available in 28-pin SSOP packages.
