MXL1001

Features: ` Guaranteed Low Offset Voltage MXL1001A M: 15V Max MXL1001C: 60V Max` Guaranteed Low Drift MXL1001A M: 0.6V/°C Max MXL1001C: 1.0V/°C Max` Guaranteed Low Bias Current MXL1001A M: 2nA Max MXL1001C: 4nA Max` Guaranteed C MRR MXL1001A M: 114dB Min MXL1001C: 110dB Min` Guaranteed PSR...

product image

MXL1001 Picture
See larger image
SeekIC No. : 004431959 Detail

MXL1001: Features: ` Guaranteed Low Offset Voltage MXL1001A M: 15V Max MXL1001C: 60V Max` Guaranteed Low Drift MXL1001A M: 0.6V/°C Max MXL1001C: 1.0V/°C Max` Guaranteed Low Bias Current MXL1001A M: 2nA ...

MXL1001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MXL1001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Guaranteed Low Offset Voltage
   MXL1001A   M: 15V    Max
   MXL1001C: 60V    Max
` Guaranteed Low Drift
   MXL1001A   M: 0.6V/°C    Max
   MXL1001C: 1.0V/°C    Max
` Guaranteed Low Bias Current
   MXL1001A   M: 2nA    Max
   MXL1001C: 4nA    Max
` Guaranteed C   MRR
   MXL1001A   M: 114dB    Min
   MXL1001C: 110dB    Min
` Guaranteed PSRR
   MXL1001A   M: 110dB    Min
   MXL1001C: 106dB    Min
` Low Power Dissipation
   MXL1001A   M: 75   MW    Max
   MXL1001C: 80   MW    Max
` Low Noise: 0.3Vp-p


Application

·Thermocouple Amplifiers
·Low-Level Signal Processing
·Strain Gauge Amplifiers
·High-Accuracy Data Acquisition


Pinout

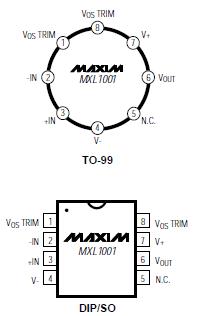

Connection Diagram


Specifications

Total Supply Voltage (V+ to V-) ...........................................±22V
Continuous Power Dissipation .........................................500mW
TO-99(H)-derate at 7.1mW/ above +80
CERDIP(J)-derate at 6.7mW/ above +75
Plastic DIP(P)-derate at 5.6mW/ above +36
Small Outline(S)-derate at 5mW/ above +55
Differential Input Voltage .....................................................±30V
Input Voltage (Note 1)..........................................................±22V
Duration of Output Short Circuit .....................................Indefinite
Operating Temperature Ranges:
MXL1001C_/AC_.........................................................0 to +70
MXL1001M_/AM_...................................................-55 to +125
Junction Temperature (TJ).....................................-65 to +160
Storage Temperature Range ................................-65 to +150
Lead Temperature (soldering, 10sec) ................................+300
Note 1: For supply voltages less than ±22V, the absolute maximum input voltage is equal to the supply voltage.


Description

The MXL1001 offers significant specification improvement over earlier precision operational amplifiers and is pincompatible with the industry-standard LT1001. Particular attention has been paid to the optimization of key parameters such as input offset voltage, common-mode rejection, and power-supply rejection. In addition, the high-performance MXL1001C commercial temperature device provides considerable cost savings when compared to equivalent grades of competing precision amplifiers.

The input offset voltage of all units is less than 60V, allowing the premium military device, the MXL1001AM, to be specified at 15V max. Power dissipation is close to half that of the industry-standard OP-07 precision op amp, without sacrificing noise or speed performance. A useful by-product of lower dissipation is decreased warm-up drift.
