Features:

• Complies with IEEE 802.3 Standards
• Integral 10 Mb/s Buffer for Dual 10 Mb/s&100 Mb/s Applications
• Baseline Wander correction
• Adapative Equalization
• 25 MHz to 125 MHz Transmit Clock Multiplier
• Five Bit TTL Nibble at 25 MHz Input/Output
• 25 MHz received recovery clock
• Operates over 100 Meters of STP and Category 5 UTP Cable (>7.5 dB)
• Single +5V Supply
• 52 PQFP package


Pinout

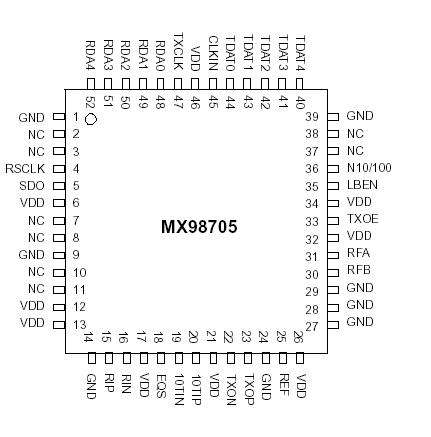

Connection Diagram


Specifications

Vcc Supply Voltage Range ........................ -0.3V to 6V
Storage Temperatur ....................... -65°C to 150°C
Input Voltage Range
Lead Temperature (10 sec) .............................. 60°C
Digital Inputs .......................................... -0.3V to Vcc
ESD ............................................................ 2k VHHBM
Output Current
TXOP, TXON ...................................................... 70mA
All other outputs ............................................... 10mA


Description

The MX98705 is a fully intergrated physical layer device supporting 100Base-TX or FDDI over copper applications.The MX98705 integrates 125 MHz clock recovery/generation,receive adaptive equalization, and baseline wander correction, it provides 5-bit parallel interface to any MAC controller.

The MX98705 receive section includes an adaptive equalizer with DC baseline wander compensation, MLT-3 to NRZ decoder, and a 125 MHz receive clock recovery circuit. The transmit section provide NRZ to MLT-3 for 100Base-TX and a buffer for 10 Mb/s application.
