Features:

* Compatible with ANSI X3T9.5 TP-PMD draft standard
* Compatible with ANSI IEEE 802.3 100 Base-T fast ethernet draft standard
* Integrated trans mitter and receiver with adaptive equalizer
* Programmable NRZI and MLT3 selection
* Programmable full equalization, normal equalization and equalization
* Isolated digital and analog power supply to minimize the power and ground noise
* Controlled transmit output slew rates to reduce EMI
* Tri-state control of transmit output current
* Loop back control for board diagnostics
* Single 5 Volts supply


Pinout

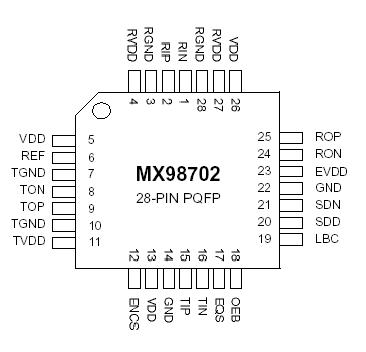

Connection Diagram


Specifications

Logic Power Referenced to GND ............................................-0.5V to +0.7V
Received Power Referenced to RGND ....................................-0.5V to +0.7V
Transmit Power Referenced to TGND .....................................-0.5V to +0.7V
ECL output Power Referenced to GND ...................................-0.5V to +0.7V
DC output current (High) ....................................................................-50mA
ESD .........................................................................................................TBD
Storage Temperature ..........................................................-6.5 to +150


Description

The MX98702 100Base-TX PMD transceiver is an integrated circuitcapable of transmitting and receiveing of 125 Mbaud three level (MLT-3) encoded datastream. it allows links of up to 100 meters of UTP (Unshielded Twisted paired cable) (over Category 5) and STP (Shielded Twisted paired cable).
