SeekIC No. : 003811048 Detail

MTW30-51515: PWRSUP TRIPLE OUTPUT 5V/15V/-15V

MTW30-51515 Data Sheet

US $ 24~30.14 / Piece | Get Latest Price

Part Number:: MTW30-51515
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250

Unit Price
$30.14
$27.98
$26.69
$24.97
$24

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

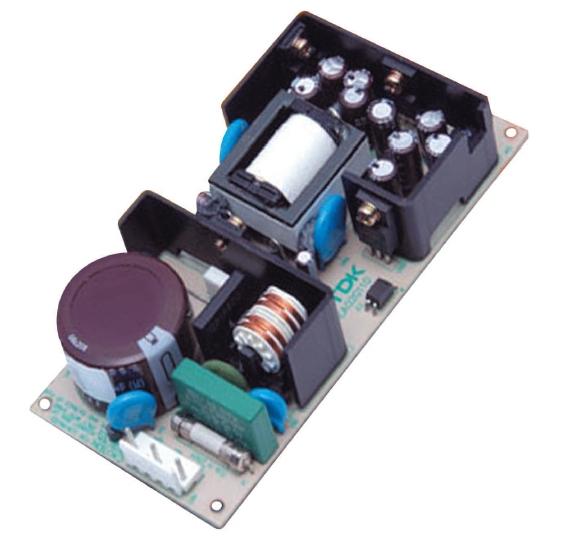

MTW30-51212 evaluate
US $27.2 - 27.8 / Piece

Linear and Switching Power Supplies 30W 5V 12V 3A -12V/0.3A
MTW32N20E evaluate
MOSFET 200V 32A N-Channel
MTW32N20EG evaluate
MOSFET NFET T0247 200V 32A 75mOhm

Product Details

Quick Details

Series:	MTW	Manufacturer:	TDK-Lambda Americas Inc
Type:	Standard Product	Number of Outputs:	3
Voltage - Output:	5V, ±15V	Voltage - Input:	85 ~ 265VAC
Output - 1 @ Current (Max):	5 VDC @ 3A	Output - 2 @ Current (Max):	15 VDC @ 800mA
Output - 3 @ Current (Max):	-15 VDC @ 300mA	Output - 4 @ Current (Max):	-
Power (Watts):	30W	Minimum Operating Temperature :	0 C
Power Supply Type:	Switching (Open Frame)	Applications:	Commercial
Mounting Type:	Chassis Mount	Size / Dimension:	5.51" L x 2.56" W x 1.02" H (140.0mm x 65.0mm x 26.0mm)
Operating Temperature:	-10°C ~ 60°C

Description

Type: Standard Product
Output - 4 @ Current (Max): -
Power Supply Type: Switching (Open Frame)
Applications: Commercial
Mounting Type: Chassis Mount
Output - 1 @ Current (Max): 5 VDC @ 3A
Power (Watts): 30W
Operating Temperature: -10°C ~ 60°C
Efficiency: 76%
Number of Outputs: 3
Manufacturer: TDK-Lambda Americas Inc
Voltage - Input: 85 ~ 265VAC
Voltage - Output: 5V, ±15V
Series: MTW
Size / Dimension: 5.51" L x 2.56" W x 1.02" H (140.0mm x 65.0mm x 26.0mm)
Output - 3 @ Current (Max): -15 VDC @ 300mA
Output - 2 @ Current (Max): 15 VDC @ 800mA

Parameters:

Technical/Catalog Information	MTW30-51515
Vendor	TDK-LAMBDA AMERICAS INC
Category	Power Supplies
Number of Outputs	3
Power (Watts)	30W
Voltage - Output	5V, 15V, -15V
Voltage - Input	85 ~ 265VAC
Power Supply Type	Switching (Open Frame)
1st Output	5 VDC @ 3A
2nd Output	15 VDC @ 800mA
3rd Output	-15 VDC @ 300mA
4th Output	-
Mounting Type	Chassis Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MTW30 51515 MTW3051515 285 1478 ND 2851478ND 285-1478
