Product Details

Description



Features:

·8051 core, 12MHz operating frequency
·1024-byte RAM; 64K-byte program Flash-ROM support In System Programming(ISP)
·Maximum 14 channels of 5V open-drain PWM DAC
·Maximum 32 bi-directional I/O pins
·SYNC processor for composite separation/insertion, H/V polarity/frequency check, polarity adjustment and programmable clamp pulse output
·Built-in self-test pattern generator with four free-running timings
·Built-in low power reset circuit
·Compliant with VESA DDC1/2B/2Bi/2B+ standard
·Dual slave IIC addresses
·Single master IIC interface for internal device communication
·4-channel 6-bit ADC
·Watchdog timer with programmable intervals
·40-pin DIP, 42-pin SDIP or 44-pin PLCC package.


Pinout

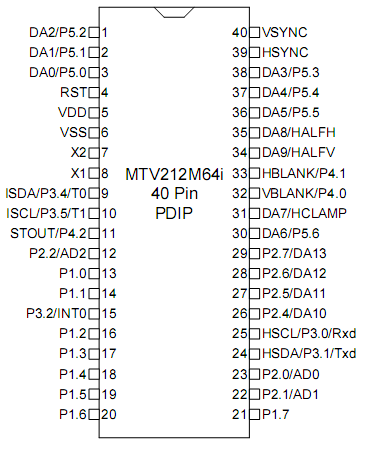

Connection Diagram


Specifications

at: Ta= 0 to 70 , VSS=0V

Name
Symbol
Range
Unit
Maximum Supply Voltage
Maximum Input Voltage
Maximum Output Voltage
Maximum Operating Temperature
Maximum Storage Temperature
VDD
Vin
Vout
Topg
Tstg
-0.3 to +6.0
0.3 to VDD+0.3
0.3 to VDD+0.3
0 to +70
-25 to +125
V
V
V
oC
oC




Description

The MTV212MN64 micro-controller is an 8051 CPU core embedded device especially tailored to Monitor applications. It includes an 8051 CPU core, 1024-byte SRAM, SYNC processor, 14 built-in PWM DACs, VESA DDC interface, 4-channel A/D converter and a 64K-byte internal program Flash-ROM.
