MTV212A32

·8051 core, 12MHz operating frequency.
·512-byte RAM, 32K-byte program Mask-ROM.
·Maximum 14 channels of 5V open-drain PWM DAC.
·Maximum 31 bi-directional I/O pins.
·SYNC processor for composite separation/insertion, H/V polarity/frequency check, polarity adjustment and programmable clamp pulse output.
·Built-in self-test pattern generator with four free-running timings.
·Built-in low power reset circuit.
·Compliant with VESA DDC1/2B/2Bi/2B+ standard.
·Dual slave IIC addresses.
·Single master IIC interface for internal device communication.
·3-channel 6-bit ADC.
·Watchdog timer with programmable interval.

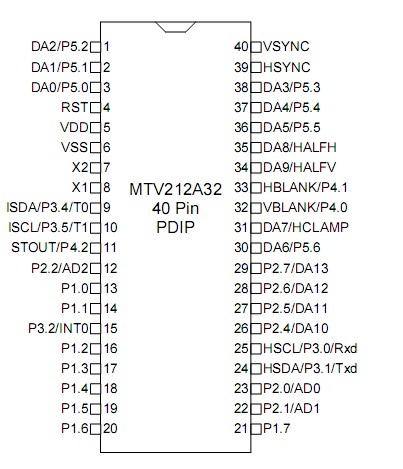

·40-pin DIP, 42-pin SDIP or 44-pin PLCC package.

at: Ta= 0 to 70 , VSS=0V

The MTV212A32 micro-controller is an 8051 CPU core embedded device specially tailored to Monitor applications. It includes an 8051 CPU core, 512-byte SRAM, SYNC processor, 14 built-in PWM DACs, VESA DDC interface, 3-channel A/D converter and a 32K-byte internal program Mask-ROM.
