MTV212M64I

Features: `8051 core, 12MHz operating frequency`1024-byte RAM; 64K-byte program Flash-ROM support In System Programming(ISP)`Maximum 14 channels of 5V open-drain PWM DAC`Maximum 32 bi-directional I/O pins`SYNC processor for composite separation/insertion, H/V polarity/frequency check, polarity adj...

product image

MTV212M64I Picture
See larger image
SeekIC No. : 004430975 Detail

MTV212M64I: Features: `8051 core, 12MHz operating frequency`1024-byte RAM; 64K-byte program Flash-ROM support In System Programming(ISP)`Maximum 14 channels of 5V open-drain PWM DAC`Maximum 32 bi-directional I/...

MTV212M64I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MTV212M64I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 8051 core, 12MHz operating frequency
`1024-byte RAM; 64K-byte program Flash-ROM support In System Programming(ISP)
`Maximum 14 channels of 5V open-drain PWM DAC
`Maximum 32 bi-directional I/O pins
`SYNC processor for composite separation/insertion, H/V polarity/frequency check, polarity adjustment and programmable clamp pulse output
`Built-in self-test pattern generator with four free-running timings
`Built-in low power reset circuit
`Compliant with VESA DDC1/2B/2Bi/2B+ standard
`Dual slave IIC addresses
`Single master IIC interface for internal device communication
`4-channel 6-bit ADC
`Watchdog timer with programmable intervals
`40-pin DIP, 42-pin SDIP or 44-pin PLCC package.


Pinout

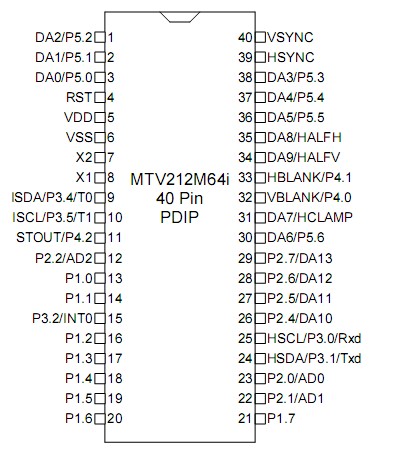

Connection Diagram


Specifications

a= 0 to 70  , VSS=0V

Name
Symbol
Range
Unit
Maximum Supply Voltage
Maximum Input Voltage
Maximum Output Voltage
Maximum Operating Temperature
Maximum Storage Temperature
VDD
Vin
Vout
Topg
Tstg
-0.3 to +6.0
0.3 to VDD+0.3
0.3 to VDD+0.3
0 to +70
-25 to +125
V
V
V
oC
oC




Description

The MTV212M64I micro-controller is an 8051 CPU core embedded device especially tailored to Monitor applications. It includes an 8051 CPU core, 1024-byte SRAM, SYNC processor, 14 built-in PWM DACs, VESA DDC interface, 4-channel A/D converter and a 64K-byte internal program Flash-ROM.
