Features:

• Horizontal sync input may be up to 120 KHz.
• Acceptable wide-range pixel clock up to 96MHz from XIN pin.
• Full-screen display consists of 15 (rows) by 30 (columns) characters.
• 12 x 18 dot matrix per character.
• Total of 256 characters and graphic fonts including 248 mask ROM fonts and 8 programmable RAM fonts.
• 8 color selection maximum per display character.
• Double character height and/or width control.
• Programmable positioning for display screen center.
• Bordering, shadowing and blinking effect.
• Programmable vertical character height (18 to 71 lines) control.
• Row to row spacing register to manipulate the constant display height.
• 4 programmable background windows with multilevel operation.
• Software clears for display frame.
• Half tone and fast blanking output.
• 8-channel/8-bit PWM D/A converter output.
• Compatible with SPI bus or I2C interface with address 7AH (slave address is mask option).
• 16 or 24-pin PDIP/SOP package.


Pinout

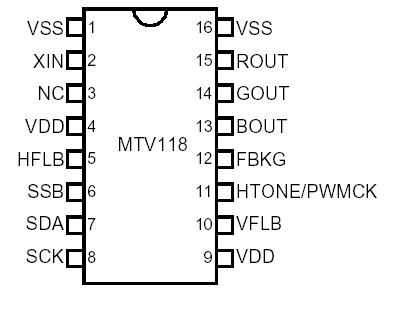

Connection Diagram


Specifications

DC Supply Voltage(VDD,VDDA) . . . . . . . . . . . . . . .  . -0.3 to +7 V
Ground Voltage . . . . . . . . . . . . . . . . . . . . .  .  -0.3 to VDD+0.3 V
Storage Temperature . . . . . . . . . . . . . . . . . . . . . -65 to +150
Ambient Operating Temperature  . . . . . . . . . . . . . . .0 to +70


Description

MTV118 is designed for LCD monitor applications to display the built-in characters or fonts onto an LCD monitor screen. The display operates by transferring data and control information from the micro controller to the RAM through a serial data interface. It can execute full screen displays automatically and specific functions such as character bordering, shadowing, blinking, double height and width, font by font color control, frame positioning, frame size control by character height and windowing effect. Moreover, MTV118 also provides 8 PWM DAC channels with 8-bit resolution and a PWM clock output for external digital-to-analog control.
