Features: ·Horizontal SYNC input up to 150 KHz.
·On-chip PLL circuitry or external pixel clock input up to 150 MHz.
·Software control for CRT/LCD applications.
·Programmable R,G,B input level for timing measurement among HFLB, VFLB, RIN, GIN and BIN for auto sizing.
·Full screen self-test pattern generator.
·Programmable Hor. resolutions up to 1524 dots per line.
·Full-screen display consists of 15 (rows) by 30 (columns)
·Two font size 12x16 or 12x18 dot matrix per character.
·True totally 544 mask ROM fonts including 512 standard fonts and 32 multi-color fonts.
·Character button boxes with programmable box length.
·Double character height and/or width control.
·Programmable positioning for display screen center.
·Character bordering, shadowing and blinking effect.
·Character (per row) and window intensity control.
·Row to row spacing control to avoid expansion distortion.
·4 programmable windows with multi-level operation.
·Shadowing on windows with programmable shadow width/height/color.
·Programmable adaptive approach to handle H, V sync collision automatically by hardware.
·Software clears bit for full-screen erasing.
·Fade-in/fade-out or blending-in/blending-out effects.
·Compatible with SPI bus or I2 C interface with slave address 7AH/7BH (slave address is mask option).

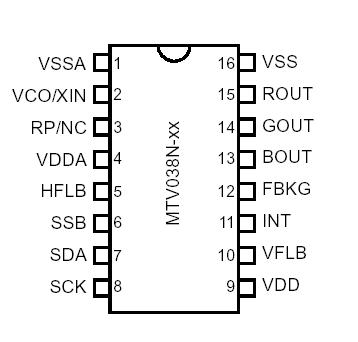

·16-pin or 20-pin PDIP/SOP package.Pinout
SpecificationsDC Supply Voltage(VDD,VDDA) ...............-0.3 to +7 V
Voltage with respect to Ground ....-0.3 to VDD+0.3 V
Storage Temperature.......................... -65 to +150
Ambient Operating Temperature.............. 0 to +70DescriptionMTV038 is designed for CRT/LCD monitor applications to display built-in characters or fonts onto monitor screens. The display operation occurs by transferring data and con- trol information from the micro-controller to RAM through a serial data interface. It can execute full-screen display automatically, as well as specific functions such as charac- ter background, bordering, shadowing, blinking, double height and width, font by font color control, character but- ton boxes, frame positioning, frame size control by charac- ter height and row-to-row spacing, horizontal display resolution, full-screen erasing, fade-in/fade-out effect, win- dowing effect, shadowing on window and full-screen self- test pattern generator.
MTV038 provides 544 fonts including 512 standard fonts and 32 multi-color fonts and 2 font sizes, 12x16 or 12x18 for more efficacious applications. The full OSD menu is formed by 15 rows x 30 columns, which can be positioned anywhere on the monitor screen by changing vertical or horizontal delay.
The MTV038 auto sizing video measurement module measure the timing relationship among HFLB, VFLB, and R, G, BIN with 12-bit resolution at the speed related to the OSD pixel clock. And the R, G, BIN input level can be programming by software. MCU can get the measurement data, active video, front porth and back porth, through I2C bus read/ write operation to keep the appropriate display size and center.
MTV038 Data Sheet
