MTV012A

Features: ·8051 core.·256 bytes internal RAM.·8K bytes program Mask ROM.·14 channels 10V open drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin.·20 bi-direction I/O pin, 12 dedicated pin, 4 shared with DAC, 4 shared with DDC/IIC interface.·3 output pins shared with H/V sync o...

product image

MTV012A Picture
See larger image
SeekIC No. : 004430957 Detail

MTV012A: Features: ·8051 core.·256 bytes internal RAM.·8K bytes program Mask ROM.·14 channels 10V open drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin.·20 bi-direction I/O pin, 12 ded...

MTV012A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MTV012A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·8051 core.
·256 bytes internal RAM.
·8K bytes program Mask ROM.
·14 channels 10V open drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin.
·20 bi-direction I/O pin, 12 dedicated pin, 4 shared with DAC, 4 shared with DDC/IIC interface.
·3 output pins shared with H/V sync output and self test output pins.
·SYNC processor for composite sync separation, polarity and frequency check, and polarity adjustment.
·Built-in monitor self test pattern generator.
·Built-in Low Power Reset circuit.
·IIC interface for DDC1/DDC2B and EEPROM, only one EEPROM needed to store DDC1/DDC2B and
·display mode information.
·Watch dog timer with programmable interval.
·40 pin PDIP package.


Pinout

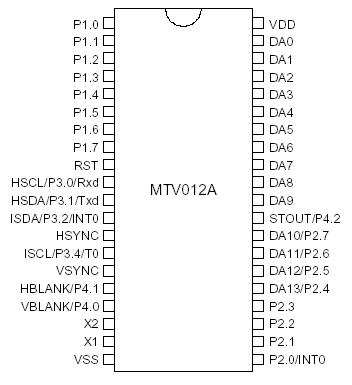

Connection Diagram


Specifications

at: Ta= 0 to 70 oC, VSS=0V

Name
Symbol
Range
Unit
Maximum Supply Voltage
Maximum Input Voltage
Maximum Output Voltage
Maximum Operating Temperature
Maximum Storage Temperature
VDD
Vin
Vout
Topg
Tstg
-0.3 to +6.0
0.3 to VDD+0.3
0.3 to VDD+0.3
0 to +70
-25 to +125
V
V
V
oC
oC




Description

The MTV012A micro controller is an 8051 CPU core-embedded device specially tailored to CRT monitor applications. MTV012A includes an 8051 CPU core, 256-byte SRAM, 14 built-in PWM DACs, DDC1/DDC2B interface, 24Cxx series EEPROM interface and an 8K-byte internal program ROM.
